当前位置：首页 » 技术支持 » 爱普生SG-211SCE系列SPXO有源晶振X1G0036210007超级适合卫星和医疗产品

爱普生SG-211SCE系列SPXO有源晶振X1G0036210007超级适合卫星和医疗产品

来源：康比电子查看手机网址

扫一扫!

爱普生SG-211SCE系列SPXO有源晶振X1G0036210007超级适合卫星和医疗产品

扫一扫!

浏览：- 发布日期：2023-04-27 17:55:21【大中小】

分享到：

爱普生SG-211SCE系列SPXO有源晶振X1G0036210007超级适合卫星和医疗产品,爱普生公司凭着自身的实力成为日系品牌的领导者之一，并通过自身能力实现自我的价值，同时致力于为广大用户提供性能优越，具有成本效益的石英贴片晶振产品线，爱普生公司最为核心在于，创建专属自身的独特核心技术和设备，庞大生产实力为爱普生公司发展奠定了良好的基础.

编码	Model/型号	Frequency/频率	LxWxH/尺寸	Output Wave/输出方式	Supply Voltage/电源电压	Ope Temperature/工作温度
X1G0029210072	SG-210SCD	63.710000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029210079	SG-210SCD	72.578300 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029210080	SG-210SCD	63.111600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029210082	SG-210SCD	62.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210083	SG-210SCD	59.800000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210085	SG-210SCD	63.360000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210086	SG-210SCD	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210087	SG-210SCD	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210088	SG-210SCD	77.700000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-40 to 85 °C
X1G0029210094	SG-210SCD	63.071918 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.700 to 3.600 V	-20 to 70 °C
X1G0029310001	SG-210SDD	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310008	SG-210SDD	62.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-40 to 85 °C
X1G0029310009	SG-210SDD	62.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310010	SG-210SDD	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310011	SG-210SDD	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-20 to 70 °C
X1G0029310013	SG-210SDD	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	2.200 to 2.700 V	-40 to 85 °C
X1G0029410001	SG-210SED	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410002	SG-210SED	75.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410006	SG-210SED	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410008	SG-210SED	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410011	SG-210SED	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410013	SG-210SED	66.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410014	SG-210SED	74.250000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0029410016	SG-210SED	60.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-20 to 70 °C
X1G0029410018	SG-210SED	72.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 2.200 V	-40 to 85 °C
X1G0036210006	SG-211SCE	12.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210007	SG-211SCE	54.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210009	SG-211SCE	25.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210010	SG-211SCE	8.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210011	SG-211SCE进口爱普生晶振	26.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210012	SG-211SCE	24.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210013	SG-211SCE	24.576000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210014	SG-211SCE	10.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210015	SG-211SCE	9.830400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210017	SG-211SCE	5.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210018	SG-211SCE	4.999950 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210019	SG-211SCE	20.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210022	SG-211SCE	40.960000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210023	SG-211SCE	20.480000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210024	SG-211SCE	27.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210025	SG-211SCE	7.200000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210026	SG-211SCE	40.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210028	SG-211SCE	40.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210029	SG-211SCE	20.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210030	SG-211SCE	24.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210031	SG-211SCE	48.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210032	SG-211SCE	16.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C
X1G0036210034	SG-211SCE	24.545400 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210036	SG-211SCE	40.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210039	SG-211SCE	19.200000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-20 to 70 °C
X1G0036210041	SG-211SCE	16.384000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	2.700 to 3.630 V	-40 to 85 °C

爱普生SG-211SCE系列SPXO有源晶振X1G0036210007超级适合卫星和医疗产品,随着电子行业的变幻莫测，产品更新迭代已然成为常态化，对于爱普生公司当下最主要是持续不断的自我成长以及更新更为优质的产品，以满足用于对产品的需求，在生产或制造的艺术和科学,我们积累了几十年的专业知识和经验,专注于研发生产高质量的石英晶振,有源晶振,压控振荡器, 32.768K钟表晶振,温补晶振等产品，以此为广大用户提供完美的晶振解决方案.

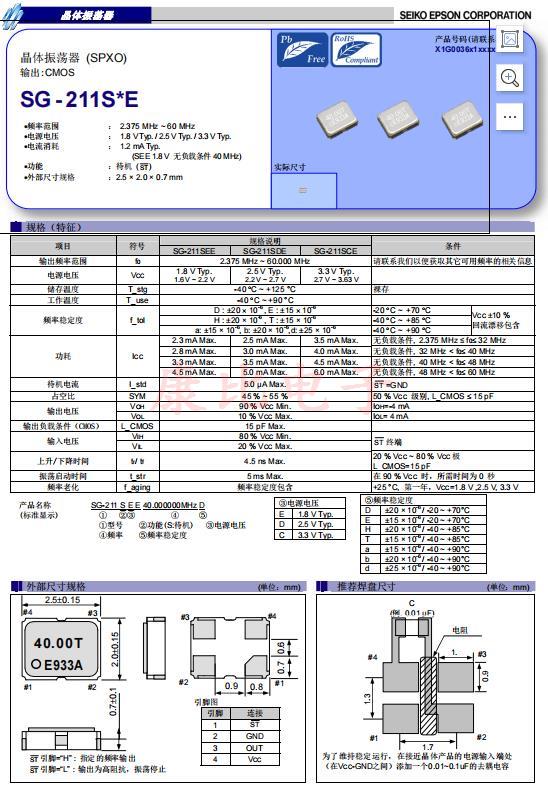

爱普生公司推出编码X1G0036210007，型号SG-211SCE，SPXO有源晶振，石英晶体振荡器，尺寸2520mm，频率为54MHZ，输出CMOS，工作温度-40 to 85 °C，电压2.7~3.6V，产品采用先进的生产技术结合优异的原料匠心打磨而成，具备高精度，低抖动，低相位的特点，非常适合太空设备，航空电子，医疗产品等领域.
