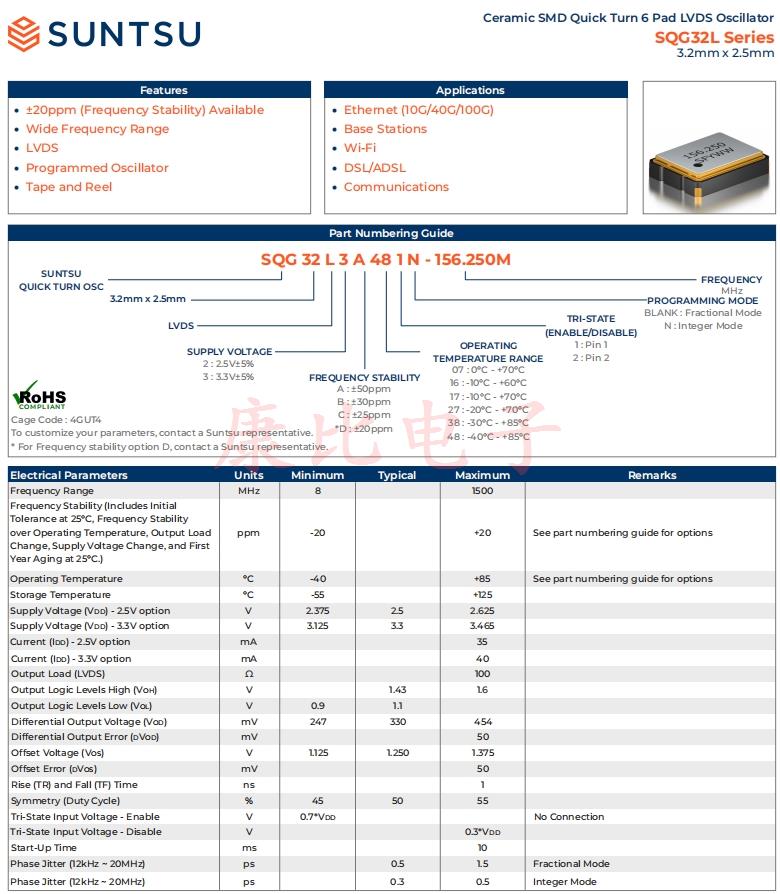

松图编码SQG32L2A381-8.000M-1500.000M是一款支持LVDS输出的有源振荡器，世界级领先供应商松图公司，作为实力派供应商，总能开发令人惊喜的优质产品，产品具备卓越的稳定性能，低抖动低损耗的特点，其中主推OSC振荡器编码SQG32L2A381-8.000M-1500.000M，型号SQG32L是一款小尺寸晶振3.2X2.5，频率为8.000M-1500.000M，SMD振荡器，差分晶振，OSCILLATOR，脚位6PAD，支持输出LVDS，抖动为1.5ps，电压2.5V±5%，频率稳定性±50ppm，工作温度-30°C-+85°C。
有源晶振产品特点：±20ppm(频率稳定性)可选，宽频率范围，LVDS，可编程振荡器，磁带和卷轴，产品主要应用范围：基站，以太网(10G/40G/100G),基站,Wi-Fi,DSL/ADSL,通信应用程序等领域。松图编码SQG32L2A381-8.000M-1500.000M是一款支持LVDS输出的有源振荡器.
| Part Number | Manufacturer | Package | Logic | Jitter | Voltage | Stability | Operating Temp. |
| SQG32L2A161-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +60°C |
| SQG32L2A162-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +60°C |
| SQG32L2A171-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +70°C |
| SQG32L2A172-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +70°C |
| SQG32L2A271-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20°C - +70°C |
| SQG32L2A272-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20°C - +70°C |
| SQG32L2A381-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30°C - +85°C |
| SQG32L2A382-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30°C - +85°C |
| SQG32L2A481-8.000M-1500.000M | Suntsu欧美晶振 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40°C - +85°C |
| SQG32L2A482-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40°C - +85°C |
| SQG32L2B071-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0°C - +70°C |
| SQG32L2B072-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0°C - +70°C |
| SQG32L2B161-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +60°C |
| SQG32L2B162-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +60°C |
| SQG32L2B171-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +70°C |
| SQG32L2B172-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +70°C |
| SQG32L2B271-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20°C - +70°C |
| SQG32L2B272-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20°C - +70°C |
| SQG32L2B381-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30°C - +85°C |
| SQG32L2B382-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30°C - +85°C |
| SQG32L2B481-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40°C - +85°C |
| SQG32L2B482-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40°C - +85°C |
| SQG32L2C071-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0°C - +70°C |
| SQG32L2C072-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0°C - +70°C |
| SQG32L2C161-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +60°C |
| SQG32L2C162-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +60°C |
| SQG32L2C171-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG32L2C172-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG32L2C271-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG32L2C272-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG32L2C381-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG32L2C382-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG32L2C481-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG32L2C482-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG32L3A071-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
| SQG32L3A072-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
| SQG32L3A161-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG32L3A162-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG32L3A171-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG32L3A172-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG32L3A271-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG32L3A272-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG32L3A381-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG32L3A382-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG32L3A481-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG32L3A482-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG32L3B071-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG32L3B072-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG32L3B161-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG32L3B162-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG32L3B171-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG32L3B172-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG32L3B271-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG32L3B272-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG32L3B381-8.000M-1500.000M | Suntsu振荡器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -30°C - +85°C |
