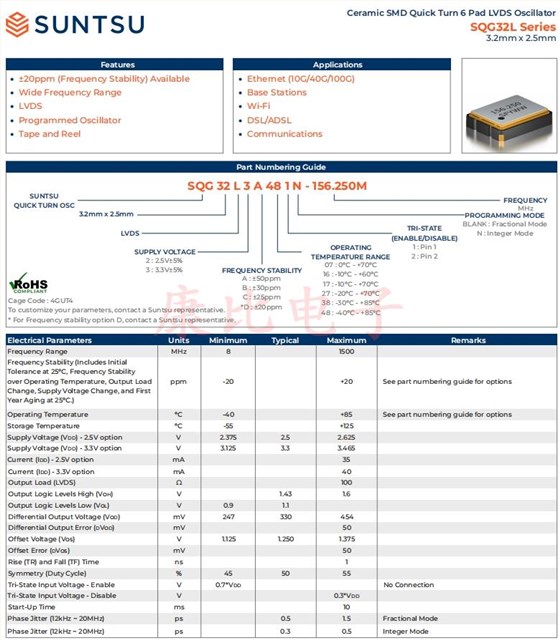

松图编码SQG32L2A381-8.000M-1500.000M是一款支持LVDS输出的有源振荡器

2023-06-16 15:48:07

松图编码SQG32L2A381-8.000M-1500.000M是一款支持LVDS输出的有源振荡器,世界级领先供应商松图公司,作为实力派供应商,总能开发令人惊喜的优质产品,产品具备卓越的稳定性能,低抖动低损耗的特点,其中主推OSC振荡器编码SQG32L2A381-8.000M-1500.000M,型号SQG32L是一款小尺寸晶振3.2X2.5,频率为8.000M-1500.000M,SMD振荡器,差分晶振,OSCILLATOR,脚位6PAD,支持输出LVDS,抖动为1.5ps,电压2.5V±5%,频率稳定性±50ppm,工作温度-30°C-+85°C。

SQG32L 1有源晶振产品特点:±20ppm(频率稳定性)可选,宽频率范围,LVDS,可编程振荡器,磁带和卷轴,产品主要应用范围:基站,以太网(10G/40G/100G),基站,Wi-Fi,DSL/ADSL,通信应用程序等领域。松图编码SQG32L2A381-8.000M-1500.000M是一款支持LVDS输出的有源振荡器.

Part Number Manufacturer Package Logic Jitter Voltage Stability Operating Temp.
SQG32L2A161-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +60°C
SQG32L2A162-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +60°C
SQG32L2A171-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +70°C
SQG32L2A172-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -10°C - +70°C
SQG32L2A271-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -20°C - +70°C
SQG32L2A272-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -20°C - +70°C
SQG32L2A381-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -30°C - +85°C
SQG32L2A382-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -30°C - +85°C
SQG32L2A481-8.000M-1500.000M Suntsu欧美晶振 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -40°C - +85°C
SQG32L2A482-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±50ppm -40°C - +85°C
SQG32L2B071-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm 0°C - +70°C
SQG32L2B072-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm 0°C - +70°C
SQG32L2B161-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +60°C
SQG32L2B162-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +60°C
SQG32L2B171-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +70°C
SQG32L2B172-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -10°C - +70°C
SQG32L2B271-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -20°C - +70°C
SQG32L2B272-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -20°C - +70°C
SQG32L2B381-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -30°C - +85°C
SQG32L2B382-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -30°C - +85°C
SQG32L2B481-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -40°C - +85°C
SQG32L2B482-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±30ppm -40°C - +85°C
SQG32L2C071-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm 0°C - +70°C
SQG32L2C072-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm 0°C - +70°C
SQG32L2C161-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +60°C
SQG32L2C162-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +60°C
SQG32L2C171-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +70°C
SQG32L2C172-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -10°C - +70°C
SQG32L2C271-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -20°C - +70°C
SQG32L2C272-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -20°C - +70°C
SQG32L2C381-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -30°C - +85°C
SQG32L2C382-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -30°C - +85°C
SQG32L2C481-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -40°C - +85°C
SQG32L2C482-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 2.5V±5% ±25ppm -40°C - +85°C
SQG32L3A071-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm 0°C - +70°C
SQG32L3A072-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm 0°C - +70°C
SQG32L3A161-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +60°C
SQG32L3A162-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +60°C
SQG32L3A171-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +70°C
SQG32L3A172-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -10°C - +70°C
SQG32L3A271-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -20°C - +70°C
SQG32L3A272-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -20°C - +70°C
SQG32L3A381-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -30°C - +85°C
SQG32L3A382-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -30°C - +85°C
SQG32L3A481-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -40°C - +85°C
SQG32L3A482-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±50ppm -40°C - +85°C
SQG32L3B071-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm 0°C - +70°C
SQG32L3B072-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm 0°C - +70°C
SQG32L3B161-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +60°C
SQG32L3B162-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +60°C
SQG32L3B171-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +70°C
SQG32L3B172-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -10°C - +70°C
SQG32L3B271-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -20°C - +70°C
SQG32L3B272-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -20°C - +70°C
SQG32L3B381-8.000M-1500.000M Suntsu振荡器 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 1.5ps 3.3V±5% ±30ppm -30°C - +85°C
Suntsu有源晶体振荡器提供通孔或表面贴装封装,有多种尺寸可供选择。我们提供宽频率范围和许多不同的电压和逻辑选项。晶体振荡器是一种电子电路,它利用压电材料振动晶体的机械共振来产生频率非常精确的电信号。该频率通常用于记录时间,为数字集成电路提供稳定的时钟信号,以及稳定无线电发射机和接收机的频率。
