ELS06智能手环晶振,艾尔32.768K音叉晶体,ELS06-32.768kHz-9-T

频率：32.768KHZ

尺寸：2.0x1.2mm

ELS06智能手环晶振,艾尔32.768K音叉晶体,ELS06-32.768kHz-9-T，尺寸2.0x1.2mm，频率32.768KHZ，欧美进口晶振，AEL无源晶振，2012mm贴片晶振，两脚贴片晶振，水晶振动子，32.768KHZ音叉晶体，SMD晶振，无源晶振，贴片无源晶振，石英晶振，32.768K晶振，环保晶振，无源音叉晶体，电话机专用晶振，时计产品晶振，游戏机晶振，无线通信晶振，蓝牙耳机晶振，数码相机晶振，小型设备晶振，低损耗晶振，低耗能晶振，高质量晶振，高性能晶振，低老化晶振，低成本晶振，具有高质量低成本的特点.

贴片晶振产品比较常用于电话机，时计产品，游戏机，无线通信，蓝牙耳机，数码相机，小型设备等应用。ELS06智能手环晶振,艾尔32.768K音叉晶体,ELS06-32.768kHz-9-T.

订购热线：0755-27876201

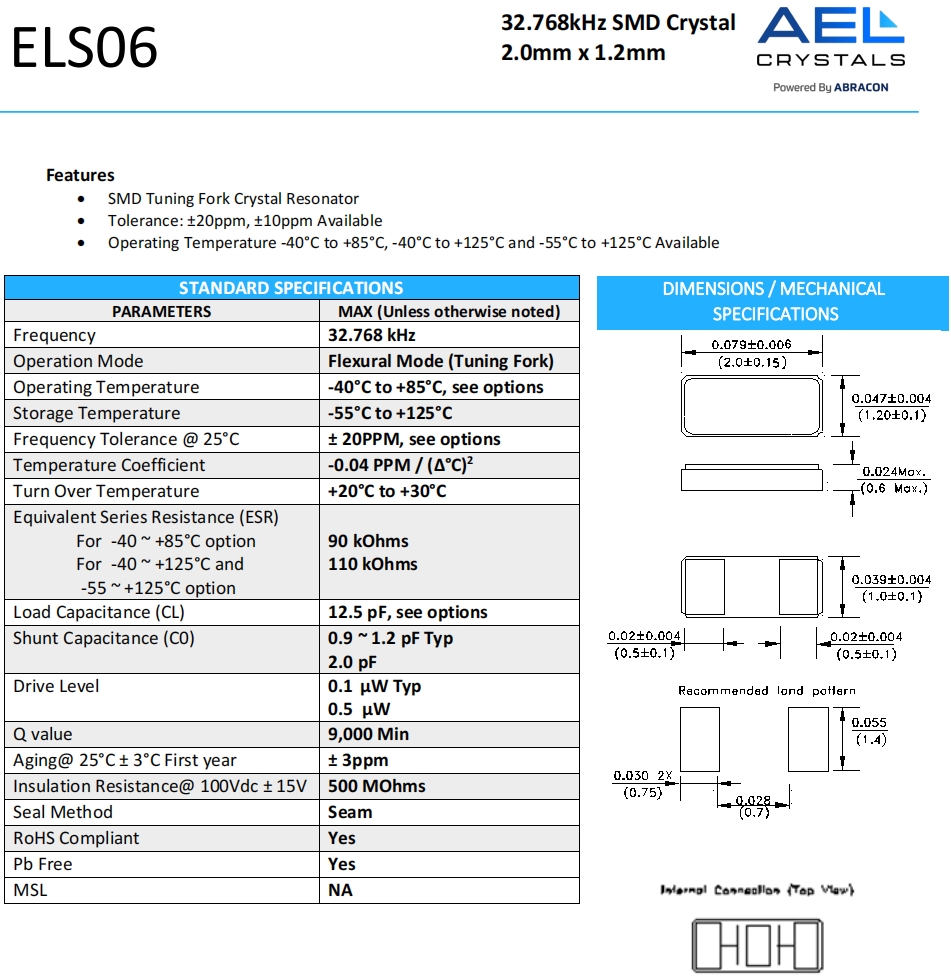

ELS06智能手环晶振,艾尔32.768K音叉晶体,ELS06-32.768kHz-9-T 参数表

STANDARD SPECIFICATIONS
PARAMETERS			MAX (Unless otherwise noted)
Frequency			32.768 kHz
Operation Mode			Flexural Mode (Tuning Fork)
Operating Temperature			-40°C to +85°C, see options
Storage Temperature			-55°C to +125°C
Frequency Tolerance @ 25°C			± 20PPM, see options
Temperature Coefficient			-0.04 PPM / (?°C)2
Turn Over Temperature			+20°C to +30°C
Equivalent Series Resistance (ESR) For -40 ~ +85°C option For -40 ~ +125°C and -55 ~ +125°C option			90 kOhms 110 kOhms
Load Capacitance (CL)			12.5 pF, see options
Shunt Capacitance (C0)			0.9 ~ 1.2 pF Typ 2.0 pF
Drive Level			0.1 μW Typ 0.5 μW
Q value			9,000 Min
Aging@ 25°C ± 3°C First year			± 3ppm
Insulation Resistance@ 100Vdc ± 15V			500 MOhms
Seal Method			Seam
RoHS Compliant			Yes
Pb Free			Yes
MSL			NA

ELS06智能手环晶振,艾尔32.768K音叉晶体,ELS06-32.768kHz-9-T 尺寸图

ELS06智能手环晶振,艾尔32.768K音叉晶体,ELS06-32.768kHz-9-T

产品特性：

SMD音叉无源晶体

公差：±20ppm，±10ppm可用

工作温度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

Part	Brand	Length	Width	Height	Operating Temperature	Frequency
ELM10-16.000MHz-8-R60-2-D20-T	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	16 MHz
ELM10-24.000MHz-16-R100-X-N15-T	AEL Crystals	2.5mm	2mm	0.5mm	-30°C ~ 85°C	24 MHz
ELM11-32.000MHz-10-R60-D1X-T	AEL Crystals	2mm	1.6mm	0.5mm	-40°C ~ 85°C	32 MHz
ELM3-12.000MHz-30-R80-D4Y-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	12 MHz
ELM3-14.000MHz-30-R80-D4H-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	14 MHz
ELM3-24.000MHz-18-R40-D4H-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	24 MHz
ELM3-8.057MHz-18-R100-B4Y-T	AEL Crystals	5mm	3.2mm	1mm	-20°C ~ 70°C	8.057 MHz
ELM8-12.000MHz-10-R50-D4Y-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz
ELM8-12.5829MHz-16-R60-1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-10°C ~ 60°C	12.5829 MHz
ELM8-14.000MHz-16-R150-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	14.8 MHz
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 75°C	32 MHz
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	32 MHz
ELS07-32.768kHz-6-T	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
ELS07-32.768kHz-T	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-9-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-6-2-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-T	艾尔晶振	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS06-32.768kHz-9-T	AEL Crystals	2mm	1.2mm	0.6mm	-40°C ~ 85°C	32.768 kHz
ELS05-32.768kHz-9-T	AEL Crystals	1.6mm	1mm	0.5mm	-40°C ~ 85°C	32.768 kHz
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	1.6mm	1.2mm	0.4mm	-40°C ~ 85°C	24 MHz
X10M000000L121	AEL Crystals	11.3mm	4mm	16mm	-20°C ~ 70°C	10 MHz
X10M000000S065	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 105°C	10 MHz
X12M000000S081	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	12 MHz
X12M000000S096	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz
X12M000000S118	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	12 MHz
X12M582900S001	AEL Crystals	3mm	2.5mm	0.6mm	-10°C ~ 60°C	12.5829 MHz
X13M560000S024	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	13.56 MHz
X14M000000S003	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	14 MHz
X14M800000S001	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	14.8 MHz
X16M000000S182	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	16 MHz
X16M000000S207	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	16 MHz
X18M432000S049	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz
X21M948717S005	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 125°C	21.948717 MHz
X24M000000S029	AEL Crystals	2.5mm	2mm	0.5mm	-30°C ~ 85°C	24 MHz
X24M000000S049	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	24 MHz
X24M000000S050	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz
X24M000000S079	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	24 MHz
X24M000000S094	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz
X24M000000S303	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz
X26M000000S301	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz
X30M000000S005	AEL Crystals	12.3mm	4.6mm	4.3mm	-20°C ~ 70°C	30 MHz
X32K768L025	AEL Crystals	2.1mm	6.2mm	13.2mm	-10°C ~ 60°C	32.768 kHz
X32K768L104	AEL Crystals	2.9mm	8mm	17mm	-10°C ~ 60°C	32.768 kHz
X32K768S003	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S012	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
X32K768S013	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S020	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S021	AEL Crystals	4.1mm	1.5mm	0.7mm	-40°C ~ 85°C	32.768 kHz
X32K768S036	AEL Crystals	10.41mm	4.06mm	3.56mm	-40°C ~ 85°C	32.768 kHz
X32K768S038	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S041	AEL Crystals	4mm	1.5mm	0.7mm	-40°C ~ 85°C	32.768 kHz
X32K768S045	AEL Crystals	2mm	6mm	9mm	-40°C ~ 85°C	32.768 kHz
X32K768S051	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S067	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
X32K768S073	AEL Crystals	6mm	2.5mm	8.3mm	-40°C ~ 85°C	32.768 kHz
X32K768S112	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S115	AEL Crystals	8mm	4mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S134	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S233	AEL Crystals	10.4mm	4mm	3.5mm	-40°C ~ 85°C	32.768 kHz
X32K768S239	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S300	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
X32M000000S039	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	32 MHz
X32M000000S045	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 75°C	32 MHz
