Q22FA23800458 FA-238 3225mm 16.384MHZ -20~70℃

Q22FA23800458 FA-238 3225mm 16.384MHZ -20~70℃，日本爱普生晶振，EPSON晶振，SMD晶振，四脚贴片晶振，无源晶体，压电石英晶体，水晶振动子，SMD晶体谐振器，石英贴片晶振，高品质晶振，低损耗晶振，汽车音响专用晶振，手机晶振，蓝牙晶振，主控板时钟晶振，仪表专用晶振，电子数码晶振，汽车音响晶振，无线局域网晶振。

石英晶振产品主要应用范围：手机、蓝牙、无线局域网，ISM波段无线电，主控板时钟等应用程序。Q22FA23800458 FA-238 3225mm 16.384MHZ -20~70℃.

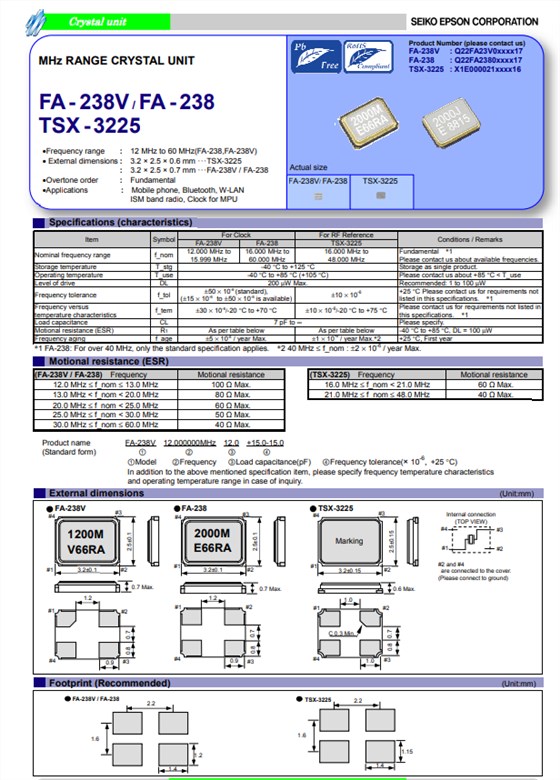

Q22FA23800458 FA-238 3225mm 16.384MHZ -20~70℃参数表

项目

符号

For Clock

For RF Reference

条件

FA-238V

FA-238

TSX-3225

标称频率范围

f_nom

12 MHz to
15.999 MHz

16 MHz to
50 MHz

16 MHz to
48 MHz

基本* 1
请与我们联系可用的频率。

储存温度

T_stg

-40°C to +125°C

作为单一产品存储。

工作温度

T_use

-40°C to +85°C (+105°C)

请与我们联系+85°C < T_use

驱动级别

200µW Max.

建议:10µW

频率公差

f_tol

±50×10-6(standard),
(±15×10-6to±50×10-6is available)

±10×10-6

+25°C请与我们联系
在本规范中列出。* 1

频率和温度特性

f_tem

±30×10-6/-20°C to +70°C

±10×10-6/-20°C to +75°C

请联系我们的要求未列出
这个规范。* 1

负载电容

7 pF to∞

请说明。

运动阻力(ESR)

As per table below

-40°C to +85°C, DL = 100µW

频率老化

f_age

±5×10-6/ year Max.

±1×10-6/ year Max.*2

+25°C，第一年year

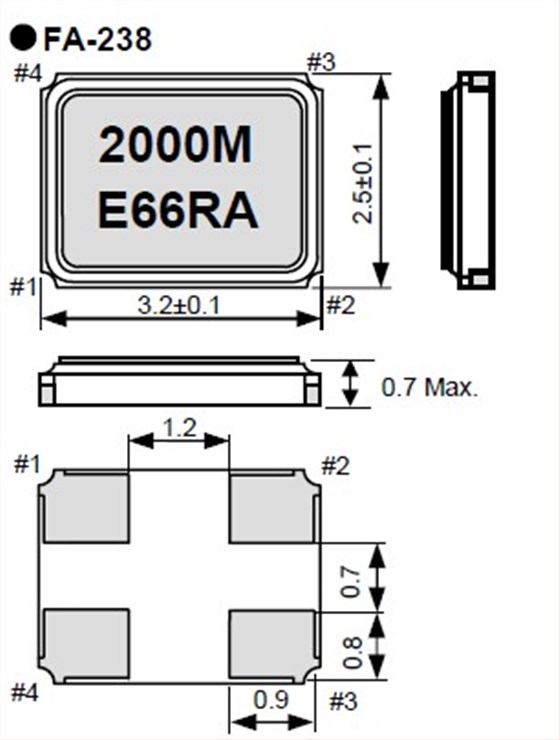

Q22FA23800458 FA-238 3225mm 16.384MHZ -20~70℃尺寸图

Q22FA23800458晶振特点：

频率范围:12MHz至50MHz (FA-238 / FA-238V)
•外部尺寸:3.2×2.5×0.6mm···TSX-3225
···FA-238V/FA-238
•泛音顺序:基本
•应用范围:手机、蓝牙、无线局域网
: ISM波段无线电，主控板时钟

更多相关EPSON爱普生晶振型号

编码	尺寸	型号	频率	负载	频率 @+25°C
Q22FA23800001	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	12 pF	+/-50 ppm
Q22FA23800002	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	18 pF	+/-50 ppm
Q22FA23800011	3.2 x 2.5 x 0.7mm	FA-238	16.934400 MHz	10 pF	+/-50 ppm
Q22FA23800013	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	10 pF	+/-50 ppm
Q22FA23800022	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	12 pF	+/-50 ppm
Q22FA23800028	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	18 pF	+/-50 ppm
Q22FA23800035	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	12 pF	+/-30 ppm
Q22FA23800041	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	20 pF	+/-50 ppm
Q22FA23800044	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	7 pF	+/-50 ppm
Q22FA23800047	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	7 pF	+/-50 ppm
Q22FA23800048	3.2 x 2.5 x 0.7mm	FA-238	49.152000 MHz	12 pF	+/-50 ppm
Q22FA23800063	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	12 pF	+/-50 ppm
Q22FA23800065	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	12 pF	+/-50 ppm
Q22FA23800075	3.2 x 2.5 x 0.7mm	FA-238	50.000000 MHz	12 pF	+/-50 ppm
Q22FA23800076	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	10 pF	+/-50 ppm
Q22FA23800078	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	18 pF	+/-50 ppm
Q22FA23800079	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	10 pF	+/-50 ppm
Q22FA23800085	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	12 pF	+/-50 ppm
Q22FA23800088	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	12 pF	+/-30 ppm
Q22FA23800089	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	16 pF	+/-50 ppm
Q22FA23800091	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	20 pF	+/-50 ppm
Q22FA23800092	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	20 pF	+/-50 ppm
Q22FA23800093	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	12 pF	+/-50 ppm
Q22FA23800095	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	12 pF	+/-50 ppm
Q22FA23800098	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	10 pF	+/-50 ppm
Q22FA23800103	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	16 pF	+/-50 ppm
Q22FA23800114	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	18 pF	+/-50 ppm
Q22FA23800120	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	18 pF	+/-50 ppm
Q22FA23800127	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	16 pF	+/-50 ppm
Q22FA23800128	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	18 pF	+/-50 ppm
Q22FA23800129	3.2 x 2.5 x 0.7mm	FA-238	22.579200 MHz	10 pF	+/-50 ppm
Q22FA23800133	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	12 pF	+/-50 ppm
Q22FA23800137	3.2 x 2.5 x 0.7mm	FA-238	40.000000 MHz	18 pF	+/-50 ppm
Q22FA23800138	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	8 pF	+/-50 ppm
Q22FA23800140	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	16 pF	+/-50 ppm
Q22FA23800141	3.2 x 2.5 x 0.7mm	FA-238	32.000000 MHz	10 pF	+/-50 ppm
Q22FA23800146	3.2 x 2.5 x 0.7mm	FA-238	26.000000 MHz	10 pF	+/-50 ppm
Q22FA23800147	3.2 x 2.5 x 0.7mm	FA-238	26.000000 MHz	20 pF	+/-50 ppm
Q22FA23800148	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	12 pF	+/-30 ppm
Q22FA23800149	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	10 pF	+/-50 ppm
Q22FA23800156	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	10 pF	+/-50 ppm
Q22FA23800165	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	12 pF	+/-30 ppm
Q22FA23800170	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	20 pF	+/-50 ppm
Q22FA23800179	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	12.5 pF	+/-50 ppm
Q22FA23800190	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	8 pF	+/-50 ppm
Q22FA23800198	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	7 pF	+/-50 ppm
Q22FA23800205	3.2 x 2.5 x 0.7mm	FA-238	19.200000 MHz	10 pF	+/-50 ppm
Q22FA23800216	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	12 pF	+/-30 ppm
Q22FA23800238	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	20 pF	+/-30 ppm
Q22FA23800240	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	30 pF	+/-50 ppm
Q22FA23800244	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	20 pF	+/-30 ppm
Q22FA23800245	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	30 pF	+/-30 ppm
Q22FA23800251	3.2 x 2.5 x 0.7mm	FA-238	36.864000 MHz	8 pF	+/-50 ppm
Q22FA23800263	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	9 pF	+/-15 ppm
Q22FA23800264	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	10 pF	+/-50 ppm
Q22FA23800269	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	9 pF	+/-50 ppm
Q22FA23800291	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	7 pF	+/-50 ppm
Q22FA23800305	3.2 x 2.5 x 0.7mm	FA-238	24.576000 MHz	16 pF	+/-50 ppm
Q22FA23800312	3.2 x 2.5 x 0.7mm	FA-238	28.636360 MHz	16 pF	+/-50 ppm
Q22FA23800322	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	12.5 pF	+/-30 ppm
Q22FA23800329	3.2 x 2.5 x 0.7mm	FA-238	32.000000 MHz	18 pF	+/-50 ppm
Q22FA23800338	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	18 pF	+/-15 ppm
Q22FA23800350	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	16 pF	+/-50 ppm
Q22FA23800353	3.2 x 2.5 x 0.7mm	FA-238	33.330000 MHz	12 pF	+/-50 ppm
Q22FA23800355	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	7 pF	+/-30 ppm
Q22FA23800356	3.2 x 2.5 x 0.7mm	FA-238	45.000000 MHz	12 pF	+/-50 ppm
Q22FA23800364	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	7 pF	+/-30 ppm
Q22FA23800367	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	18 pF	+/-50 ppm
Q22FA23800405	3.2 x 2.5 x 0.7mm	FA-238	40.000000 MHz	10 pF	+/-50 ppm
Q22FA23800415	3.2 x 2.5 x 0.7mm	FA-238	27.120000 MHz	12 pF	+/-50 ppm
Q22FA23800419	3.2 x 2.5 x 0.7mm	FA-238	40.000000 MHz	7 pF	+/-50 ppm
Q22FA23800421	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	10 pF	+/-50 ppm
Q22FA23800423	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	18 pF	+/-50 ppm
Q22FA23800432	3.2 x 2.5 x 0.7mm	FA-238	50.000000 MHz	10 pF	+/-50 ppm
Q22FA23800447	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	10 pF	+/-30 ppm
Q22FA23800448	3.2 x 2.5 x 0.7mm	FA-238	50.000000 MHz	7 pF	+/-50 ppm
Q22FA23800458	3.2 x 2.5 x 0.7mm	FA-238	16.384000 MHz	10 pF	+/-50 ppm
Q22FA23800464	3.2 x 2.5 x 0.7mm	FA-238	33.333000 MHz	10 pF	+/-50 ppm
Q22FA23800478	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	18 pF	+/-30 ppm
Q22FA23800480	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	10 pF	+/-30 ppm
Q22FA23800483	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	10 pF	+/-20 ppm
Q22FA23800489	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	10 pF	+/-20 ppm
Q22FA23800547	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	16 pF	+/-30 ppm
Q22FA23800553	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	16 pF	+/-50 ppm
Q22FA23800573	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	10 pF	+/-50 ppm
Q22FA23800591	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	8 pF	+/-50 ppm
Q22FA23800594	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	8 pF	+/-50 ppm
Q22FA23800599	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	16 pF	+/-30 ppm
Q22FA23800608	3.2 x 2.5 x 0.7mm	FA-238	48.000000 MHz	7 pF	+/-50 ppm
Q22FA23800612	3.2 x 2.5 x 0.7mm	FA-238	44.000000 MHz	10 pF	+/-50 ppm
Q22FA23800620	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	8 pF	+/-50 ppm
Q22FA23800653	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	7 pF	+/-50 ppm
Q22FA23800666	3.2 x 2.5 x 0.7mm	FA-238	18.432000 MHz	7 pF	+/-50 ppm
Q22FA23800678	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	20 pF	+/-30 ppm
Q22FA23800683	3.2 x 2.5 x 0.7mm	FA-238	24.545454 MHz	10 pF	+/-50 ppm
Q22FA23800699	3.2 x 2.5 x 0.7mm	FA-238石英贴片晶振	33.330000 MHz	10 pF	+/-50 ppm
Q22FA23800702	3.2 x 2.5 x 0.7mm	FA-238	16.000000 MHz	15 pF	+/-50 ppm
Q22FA23800706	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	8 pF	+/-30 ppm
Q22FA23800716	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	8 pF	+/-50 ppm
Q22FA23800729	3.2 x 2.5 x 0.7mm	FA-238	20.000000 MHz	7 pF	+/-50 ppm
Q22FA23800745	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	9 pF	+/-50 ppm
Q22FA23800747	3.2 x 2.5 x 0.7mm	FA-238	19.200000 MHz	10 pF	+/-30 ppm
Q22FA23800752	3.2 x 2.5 x 0.7mm	FA-238	30.000000 MHz	12 pF	+/-30 ppm
Q22FA23800753	3.2 x 2.5 x 0.7mm	FA-238	33.333300 MHz	10 pF	+/-50 ppm
Q22FA23800755	3.2 x 2.5 x 0.7mm	FA-238	19.200000 MHz	12 pF	+/-50 ppm
Q22FA23800759	3.2 x 2.5 x 0.7mm	FA-238	27.000000 MHz	9 pF	+/-30 ppm
Q22FA23800775	3.2 x 2.5 x 0.7mm	FA-238	24.000000 MHz	8 pF	+/-50 ppm
Q22FA23800776	3.2 x 2.5 x 0.7mm	FA-238	25.000000 MHz	8 pF	+/-50 ppm
Q22FA23800778	3.2 x 2.5 x 0.7mm	FA-238	49.152000 MHz	20 pF	+/-20 ppm
