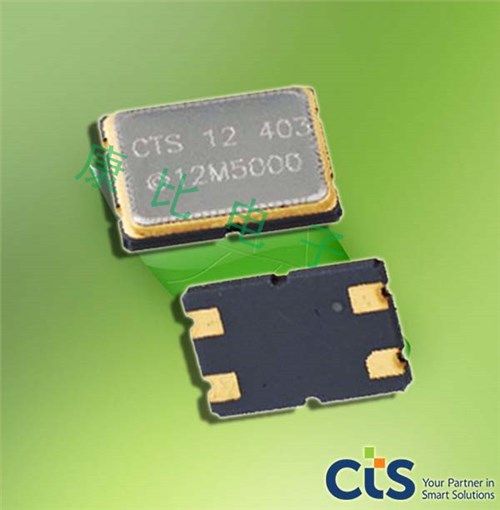

407F35D032M0000-7050mm-32MHZ-M2M通信-CTS谐振器

407F35D032M0000-7050mm-32MHZ-M2M通信-CTS谐振器，尺寸为7050mm,频率为32MHZ,欧美进口晶振，CTS晶振,无源晶振,石英晶体谐振器,石英贴片晶振,SMD晶振，物联网晶振，工业物联网应用晶振，无线通信晶振，USB接口晶振，电脑外围设备晶振，便携式设备晶振，测试与测量晶振，M2M通信晶振，407F35D024M0000晶振，407F35D020M0000贴片晶振.
贴片无源晶振产品主要应用：物联网和工业物联网应用，无线通信，FPGA /微控制器，USB接口，电脑外围设备，便携式设备，测试与测量，M2M通信，宽带接入.407F35D032M0000-7050mm-32MHZ-M2M通信-CTS谐振器.

407F35D032M0000-7050mm-32MHZ-M2M通信-CTS谐振器参数表

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNIT

O perating Temperature

-20
-30
-40
-40

+25

+70
+85
+85
+105

°C

Storage Temperature

TSTG

--55

+125

°C

Frequency Stability

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAXUNIT

Frequency Range

Fundamental Mode
3rd Overtone Mode

6 - 50
50 - 160

MHz
MHz

Frequency ToleranceΔf/fO@ +25°C10, 15, 20, 25 or 30±ppm

Freq uency Stability

Δf/f25

Referenced to +25°C reading

10, 15, 20, 25, 30 or 50

±ppm

Aging

Δf/f0

Typical per year @ +25°C

-3-

3ppm

Crystal Parameters

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNIT

Operating Mode

Fundamental & 3rd Overtone

Crystal Cut

AT-Cut Strip

Load Capacitance

See Ordering Information

Shunt Capacitance

-5 .07 .0

Series Resistance

6MHz - <12MHz
12MHz - <14MHz
14MHz - <20MHz
20MHz - 50MHz

--100
--60
--50
--40

Fundamental

3rd Overtone

50MHz - <80MHz
80MHz - <100MHz
100MHz - 160MHz

--80
--70
--50

Drive Level

-10300

µW

Insu latio n Resistance

+100Vdc ±15Vdc

500--

MΩ

Δf/f0- Frequency deviation referenced to nominal frequency.
Δf/f25- Frequency deviation over operating temperature range, r

eferenced to +25°C frequency.

407F35D032M0000-7050mm-32MHZ-M2M通信-CTS谐振器尺寸图

407F35D032M0000晶振特点：

。密封陶瓷表面贴装封装
。基本和第三泛音晶体设计
。频率范围6 - 160MHz
。频率公差，±30ppm标准
。频率稳定性，±50ppm标准
