ECS-122.8-20-3X-EN-TR数据手册|CSM-3X|12.288MHZ|SMD，尺寸为7.6*4.1mm,频率为12.288MHZ，美国ECS晶振，伊西斯晶振，无源晶体,石英晶振,石英晶体谐振器,石英贴片晶振，贴片无源晶振，SMD石英晶体，高质量晶振，低损耗晶振，笔记本电脑专用晶振，无线设备晶振，智能产品晶振，蓝牙耳机晶振，ECS-250-20-3X-EN-TR无源晶体，ECS-270-20-3X-TR高品质晶振。
石英晶体谐振器产品主要应用范围：笔记本电脑，无线设备，智能产品，蓝牙耳机，移动电话等领域。ECS-122.8-20-3X-EN-TR数据手册|CSM-3X|12.288MHZ|SMD.

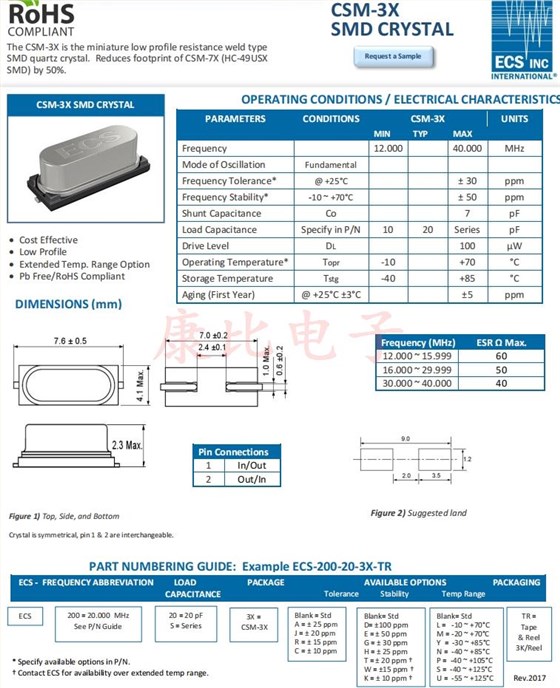

ECS-122.8-20-3X-EN-TR数据手册|CSM-3X|12.288MHZ|SMD参数表
|
PARAMETERS |
CONDITIONS |
CSM-3X |
UNITS |
||
|
MIN |
TYP |
MAX |
|||
|
Frequency |
12.000 |
40.000 |
MHz |
||
|
Mode of Oscillation |
Fundamental |
||||
|
Frequency Tolerance* |
@+25°C |
±30 |
ppm |
||
|
Frequency Stability* |
-10 ~ +70°C |
±50 |
ppm |
||
|
ShuntCapacitance |
Co |
7 |
|||
|
Load Capacitance |
SpecifyinP/N |
10 |
20 |
Series |
pF |
|
Drive Level |
DL |
100 |
μW |
||
|
OperatingTemperature* |
Topr |
-10 |
+70 |
°C |
|
|
StorageTemperature |
Tstg |
-40 |
+85 |
°C |
|
|
Aging(First Year) |
@+25°C ±3°C |
±5 |
ppm |
||

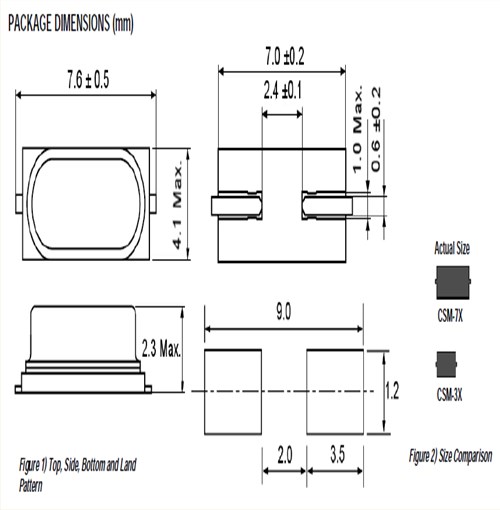

ECS-122.8-20-3X-EN-TR数据手册|CSM-3X|12.288MHZ|SMD 尺寸图

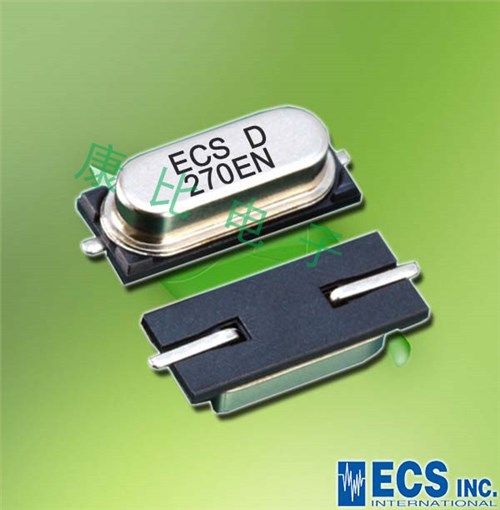

ECS-122.8-20-3X-EN-TR晶振特点：
CSM-3X是小型低轮廓电阻焊类型SMD石英晶体。减少cm-7x(HC-49USX)的占地面积SMD)减少50%。
更多相关ECS晶振型号
| 原厂编码 | 厂家 | 型号 | 频率 | 工作温度 |
| ECS-250-20-3X-TR | ECS晶振 | CSM-3X | 25MHz | -10°C ~ 70°C |
| ECS-120-20-3X-TR | ECS晶振 | CSM-3X | 12MHz | -10°C ~ 70°C |
| ECS-160-20-3X-TR | ECS晶振 | CSM-3X | 16MHz | -10°C ~ 70°C |
| ECS-143-20-3X-TR | ECS晶振 | CSM-3X | 14.31818MHz | -10°C ~ 70°C |
| ECS-147.4-20-3X-TR | ECS晶振 | CSM-3X | 14.7456MHz | -10°C ~ 70°C |
| ECS-184-20-3X-TR | ECS晶振 | CSM-3X | 18.432MHz | -10°C ~ 70°C |
| ECS-200-20-3X-TR | ECS晶振 | CSM-3X | 20MHz | -10°C ~ 70°C |
| ECS-245.7-20-3X-TR | ECS晶振 | CSM-3X | 24.576MHz | -10°C ~ 70°C |
| ECS-286.3-20-3X-EN-TR | ECS晶振 | CSM-3X | 28.63636MHz | -40°C ~ 85°C |
| ECS-300-20-3X-EN-TR | ECS晶振 | CSM-3X | 30MHz | -40°C ~ 85°C |
| ECS-400-20-3X-EN-TR | ECS晶振 | CSM-3X | 40MHz | -40°C ~ 85°C |
| ECS-160-20-3X-EN-TR | ECS晶振 | CSM-3X | 16MHz | -40°C ~ 85°C |
| ECS-122.8-20-3X-EN-TR | ECS晶振 | CSM-3X | 12.288MHz | -40°C ~ 85°C |
| ECS-147.4-20-3X-EN-TR | ECS晶振 | CSM-3X | 14.7456MHz | -40°C ~ 85°C |
| ECS-250-20-3X-EN-TR | ECS晶振 | CSM-3X | 25MHz | -40°C ~ 85°C |
| ECS-120-20-3X-EN-TR | ECS晶振 | CSM-3X | 12MHz | -40°C ~ 85°C |
| ECS-200-20-3X-EN-TR | ECS晶振 | CSM-3X | 20MHz | -40°C ~ 85°C |
| ECS-135.6-20-3X-TR | ECS晶振 | CSM-3X | 13.56MHz | -10°C ~ 70°C |
| ECS-196.6-20-3X-TR | ECS晶振 | CSM-3X | 19.6608MHz | -10°C ~ 70°C |
| ECS-184-20-3X-EN-TR | ECS晶振 | CSM-3X | 18.432MHz | -40°C ~ 85°C |
| ECS-286.3-20-3X-TR | ECS晶振 | CSM-3X | 28.63636MHz | -10°C ~ 70°C |
| ECS-270-20-3X-TR | ECS晶振 | CSM-3X | 27MHz | -10°C ~ 70°C |
| ECS-300-20-3X-TR | ECS晶振 | CSM-3X | 30MHz | -10°C ~ 70°C |
| ECS-130-20-3X-TR | ECS晶振 | CSM-3X | 13MHz | -10°C ~ 70°C |
| ECS-270-20-3X-EN-TR | 伊西斯无源晶振 | CSM-3X | 27MHz | -40°C ~ 85°C |
| ECS-122.8-20-3X-TR | ECS晶振 | CSM-3X | 12.288MHz | -10°C ~ 70°C |
| ECS-143-20-3X-EN-TR | ECS晶振 | CSM-3X | 14.31818MHz | -40°C ~ 85°C |
| ECS-400-20-3X-TR | ECS晶振 | CSM-3X | 40MHz | -10°C ~ 70°C |
| ECS-135.6-20-3X-EN-TR | ECS晶振 | CSM-3X | 13.56MHz | -40°C ~ 85°C |
| ECS-200-CDX-0914 | ECS晶振 | CSM-3X | 20MHz | -60°C ~ 105°C |
