NDK6G光通信晶振,NP2520SA-125.000000MHz-NSC5300B,LVPECL输出振荡器，日本进口晶振，NDK晶振，型号为：NP2520SA，编码为：NP2520SA-125.000000MHz-NSC5300B，频率为：125.000000MHz，紧凑尺寸：2.5x2.0x0.8mm，是一款LV-PECL差分晶体振荡器，六脚贴片晶振，有源晶振，SPXO石英晶体振荡器，电源电压：2.5V，3.3V，出色的低电压(最大值100 fs(156.25MHz)。具有低相位噪声，低抖动，低功耗，低损耗，低电源电压，低电平等特点。使用于产品中能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的。NP2520SA有源晶振适用于通信网络，光通信， 光收发器、WDM设备，无线网络，蓝牙模块，机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、测试血糖仪应用等。
LVPECL石英晶振,NP5032SA-122.880000MHz-NSC5106A,NDK6G以太网晶振,参数表
Item
Model
NP2520SA
OutputSpecification
LVPECL
NominalFrequencyRange(MHz)
100to170
StandardFrequencyRange(MHz)
156.25
OverallFrequencyTolerance*1
Max.±50×10-6
OperatingTemperatureRange(°C)
-40to+85
SupplyVoltage[VCC](V)
+2.5±5%
+3.3±10%
Current
Enable(mA)
+25°C
Max.60(STAND-BY=VCCorOPEN,RL=50Ω)
Consumption
Stand-by(μA)
+25°C
Max.30(STAND-BY=GND)
OutputVoltage(V)
VOL:Max.VCC-1.5(DCcharacteristics)
VOH:Min.VCC-1.1(DCcharacteristics)
RiseTime/FallTime(ns)
Max.0.5(20to80%Waveform)
Symmetry(%)
45to55(at50%Waveform)
OutputLoad(Ω)
50(TerminatedtoVCC–2.0V)
Start-upTime(ms)
Max.10
PhaseJitter(fs)
+3.3V,+25°C
Max.100(156.25MHz)
(OffsetFrequency:12kHzto20MHz)
SpecificationNumber
NSC5300A
NSC5300B

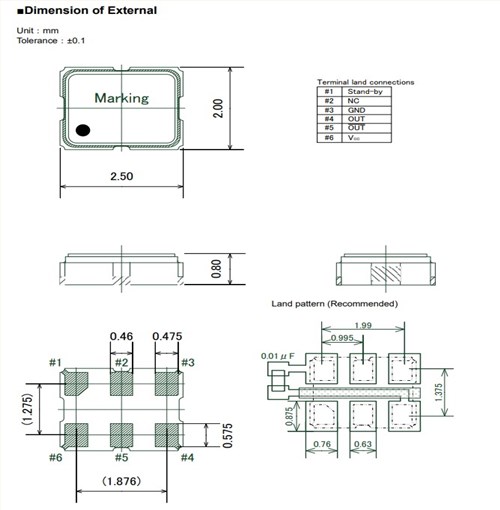

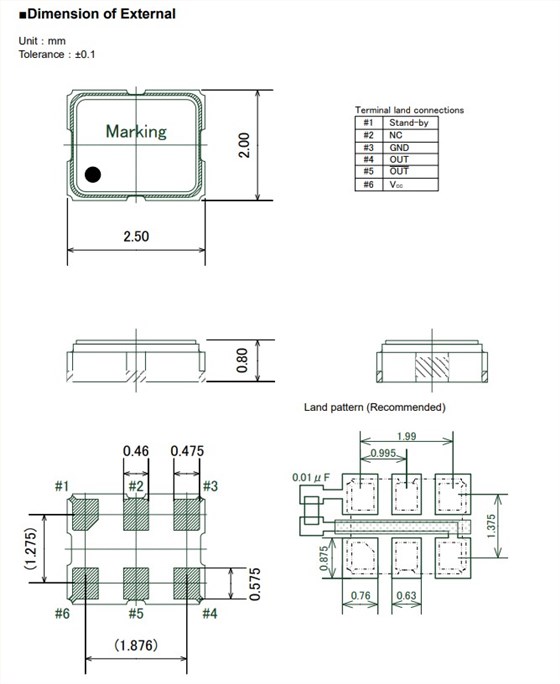

NDK6G光通信晶振,NP2520SA-125.000000MHz-NSC5300B,LVPECL输出振荡器,尺寸图

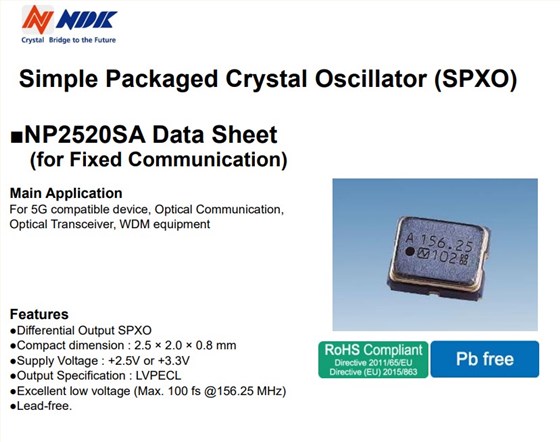

NDK6G光通信晶振,NP2520SA-125.000000MHz-NSC5300B,LVPECL输出振荡器
产品特点：
差分输出SPXO
紧凑尺寸：2.5×2.0×0.8毫米
电源电压：+2.5V或+3.3V
输出规格：LVPECL
出色的低电压（最高100 fs@156.25 MHz）
无铅的
主要应用：对于6G兼容设备，光收发器、WDM设备
| 晶振厂家 | 型号 | 频率 | 包装尺寸 | 输出方式 | 工作温度 |
| NDK晶振 | NP2520SA | 156.25MHZ | 2.5x2.0 | LVPECL | -40~+85 |
| NDK晶振 | NP2520SA | 156.25MHZ | 2.5x2.0 | LVPECL | -40~+85 |
| NDK晶振 | NP2520SB | 156.25MHZ | 2.5x2.0 | LVDS | -40~+85 |
| NDK晶振 | NP2520SB | 156.25MHZ | 2.5x2.0 | LVDS | -40~+85 |
| NDK晶振 | NP2520SAB | 156.25MHZ | 2.5x2.0 | LVPECL | -40~+85 |
| NDK晶振 | NP2520SAB | 156.25MHZ | 2.5x2.0 | LVPECL | -40~+85 |
| NDK晶振 | NP2520SBB | 156.25MHZ | 2.5x2.0 | LVDS | -40~+85 |
| NDK晶振 | NP2520SBB | 156.25MHZ | 2.5x2.0 | LVDS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+125 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+125 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+125 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+125 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2520贴片晶振 | CMOS | -40~+105 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+105 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+105 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+105 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
| NDK晶振 | NZ2520SHB | 0.032768MHZ | 2.5x2.0 | CMOS | -40~+85 |
