IQD音叉谐振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm,英国IQD晶振,英国石英晶体,无源贴片晶振,32.768KHZ晶振,无源晶体,SMD晶振,1610晶体谐振器,音叉水晶振动子,尺寸1.6x1.0mm,频率32.768KHZ,无铅晶体,耐高温晶振,低损耗晶振,高品质晶振,数字电子晶振,计算机晶振,记秒器晶振,蜡烛灯晶振,数字电表晶振.

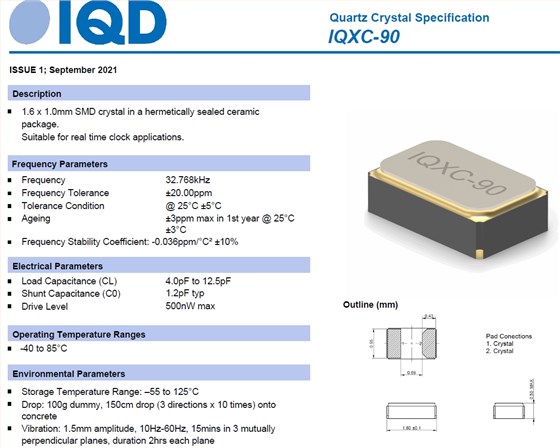

IQD音叉谐振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm特点:
密封陶瓷中的1.6 x 1.0mmSMD晶体包裹
32.768K晶振适用于实时时钟应用。
无铅环保型

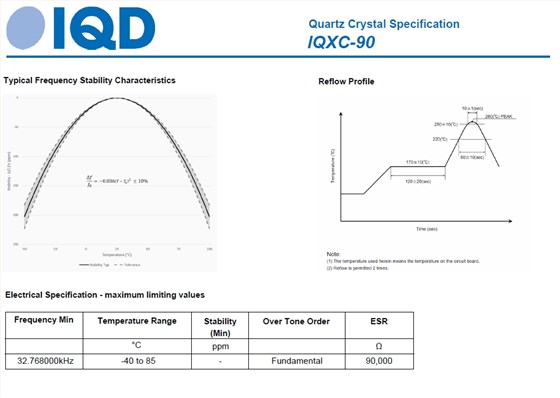

IQD音叉谐振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm 参数表
| Frequency | 32.768kHz |
| Frequency Tolerance | ±20.00ppm |
| Tolerance Condition | @ 25°C ±5°C |
| Ageing |
±3ppm max in 1st year @ 25°C ±3°C |
| Frequency Stability Coefficient: | -0.036ppm/°C² ±10% |
| Load Capacitance (CL) | 4.0pF to 12.5pF |
| Shunt Capacitance (C0) | 1.2pF typ |
| Drive Level | 500nW max |
| Operating Temperature Ranges | -40 to 85°C |

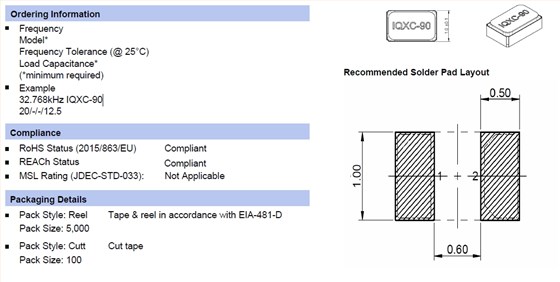

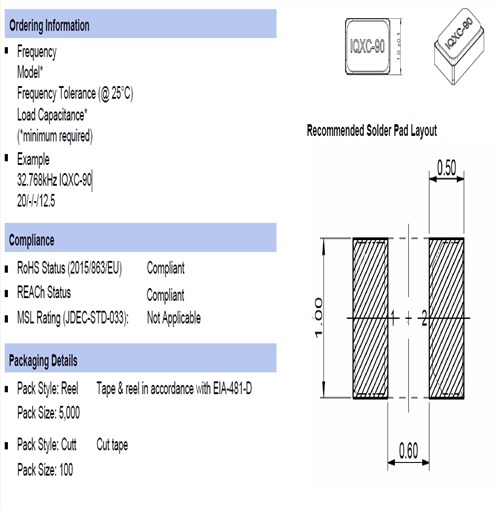

IQD音叉谐振器,IQXC-90晶振,32.768kHz IQXC-90 20/-/-/12.5,1610mm 尺寸图
