汽车音响控制器专用晶振SG2016CAA编码X1G005341005400

2022-09-15 16:32:49 康比电子

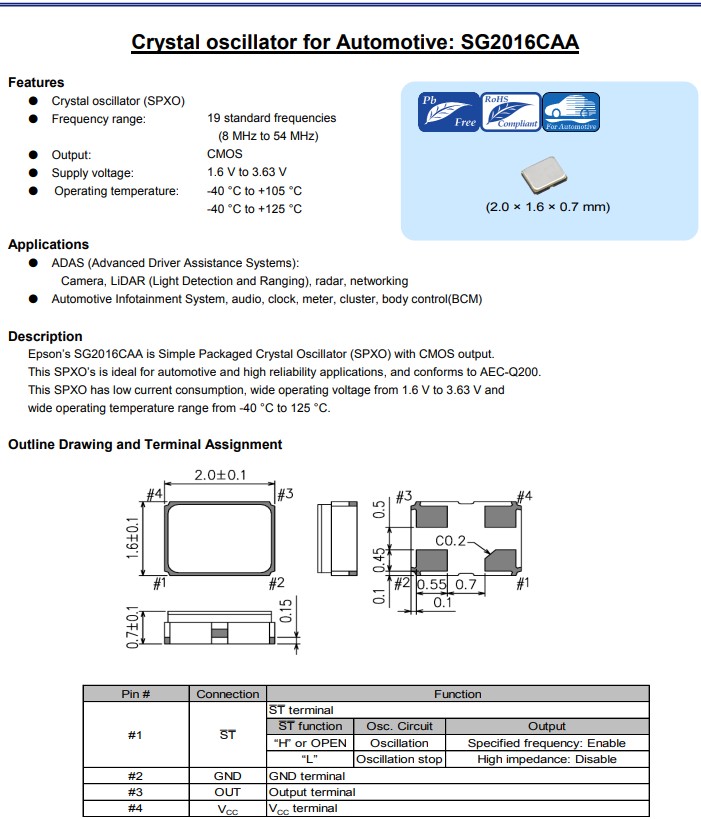

爱普生晶振SG2016CAA是一款具有CMOS输出的简单封装石英晶体振荡器(SPXO),小体积晶振尺寸2.0x1.6mm有源晶振,四脚贴片晶振,电源电压:1.6V至3.63V,频率范围8MHz至54MHz,工作温度范围从-40到125℃,具有超小型,轻薄型,低电源电压,低抖动,低功耗等特点,这款SG2016CAA晶振非常适合汽车和高可靠性应用,符合AEC-Q200标准。

汽车音响控制器专用晶振SG2016CAA编码X1G005341005400

产品编码 型号 频率 贴片晶振 输出波 电源电压 工作温度
X1G005341000200 SG2016CAA 27.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341000400 SG2016CAA 40.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341000900 SG2016CAA 25.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341001100 SG2016CAA 24.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341001300 SG2016CAA 27.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341001500 SG2016CAA 48.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341001700 SG2016CAA 12.288000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341001900 SG2016CAA 48.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341002400 SG2016CAA 20.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341002700 SG2016CAA 24.576000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341002900 SG2016CAA 24.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341003400 SG2016CAA 50.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341003500 SG2016CAA 25.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341003700 SG2016CAA 54.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341003800 SG2016CAA 54.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341004100 SG2016CAA 8.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341004400 SG2016CAA 12.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341004500 SG2016CAA 24.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C

SG2016CAA

X1G005341004600 SG2016CAA 33.333300MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341005000 SG2016CAA 50.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341005100 SG2016CAA 14.745600MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341005300 SG2016CAA 33.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341005400 SG2016CAA 16.666600MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341005600 SG2016CAA 8.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341005700 SG2016CAA 10.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341005800 SG2016CAA 12.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
X1G005341005900 SG2016CAA 16.666600MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341006000 SG2016CAA 22.579200MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341006100 SG2016CAA 11.289600MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 105°C
X1G005341006200 SG2016CAA 20.000000MHz 2.00x1.60x0.70mm CMOS 1.600 to 3.630V -40 to 125°C
汽车音响控制器专用晶振SG2016CAA编码X1G005341005400
特征:
晶体振荡器(SPXO)
频率范围:19个标准频率(8兆赫至54兆赫)汽车电子晶振
输出:CMOS
电源电压:1.6V至3.63V
工作温度:-40摄氏度至+105摄氏度,-40摄氏度至+125摄氏度
应用程序:
ADAS(高级驾驶辅助系统):摄像头、激光雷达(光探测和测距)、雷达、网络,汽车信息娱乐系统、音频、时钟、仪表、组合仪表、车身控制(BCM)。
随着汽车电子的发展,各大进口晶振品牌纷纷看向智能汽车车载系统市场,日本进口晶振NDK品牌以及KDS品牌相继推出了超小体积晶体振荡器以应对智能汽车发展.爱普生晶体元器件将进一步致力于小型,高稳定,高精度晶体元器件的开发,为现有的应用程序以及生活新蓝图开拓广阔前景. 爱普生晶振在KHZ,MHZ,以及GHZ上都有重大突破,使得爱普生拓优科梦的晶体元器件已以23%的市场占有率位于业界第一.
