超小型的CMOS振荡器用于便携式设备ECS-2520MVLC-250-BN-TR

超小型的CMOS振荡器用于便携式设备ECS-2520MVLC-250-BN-TR，The ECS Inc. MultiVolt™ series of oscillators are the most flexible oscillator products available in today market. MultiVolt™ Oscillators are available as standard oscillators (MV) ±20ppm, tight stability oscillators (SMV) ±5ppm or Temperature Compensated Crystal Oscillators (TXO-MV) ±2.5ppm for HCMOS and (TXO-CSMV) ±0.5ppm for clipped sine wave. We also offer them as AEC-Q200 automotive grade (MVQ).

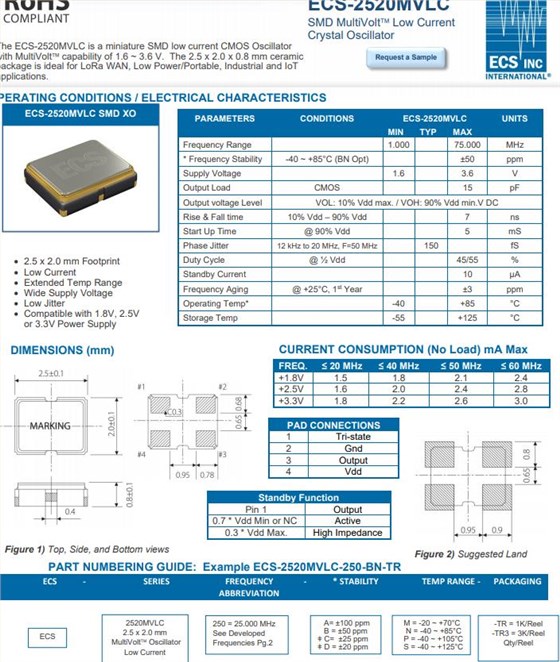

The ECS-2520MVLC is a miniature SMD low current CMOS Oscillator with MultiVolt? capability of 1.6 ~ 3.6 V. The 2.5 x 2.0 x 0.8 mm ceramic package is ideal for LoRa WAN, Low Power/Portable, Industrial and IoTapplications.

ECS公司很高兴发布MultiVolt系列振荡器是当今市场上最灵活的振荡器产品。多伏™振荡器可作为标准振荡器(MV)±20ppm，紧密稳定振荡器(SMV)±5ppm或温补晶体振荡器(TXO-MV)±2.5ppm的HCMOS和(TXO-CSMV)±0.5ppm的剪接正弦波。我们还提供AEC-Q200汽车级(MVQ)。

Manufacturer Part Number原厂代码	Manufacturer品牌	Series型号	Frequency 频率	Operating Temperature 工作温度	2520贴片晶振
ECS-3963-480-AU-TR	ECS晶振	ECS-3963	48MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-2033-040-AU	ECS晶振	ECS-2033	4MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-040-AU	ECS晶振	ECS-2033	4MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-040-AU	ECS晶振	ECS-2033	4MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-3961-240-AU-TR	ECS晶振	ECS-3961	24MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3961-240-AU-TR	ECS晶振	ECS-3961	24MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3961-240-AU-TR	ECS晶振	ECS-3961	24MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-2033-240-AU	ECS晶振	ECS-2033	24MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-240-AU	ECS晶振	ECS-2033	24MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-240-AU	ECS晶振	ECS-2033	24MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-3963-270-AU-TR	ECS晶振	ECS-3963	27MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3963-270-AU-TR	ECS晶振	ECS-3963	27MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-3963-270-AU-TR	ECS晶振	ECS-3963	27MHz	-55°C ~ 125°C	0.197" L x 0.126" W (5.00mm x 3.20mm)
ECS-2033-143-AU	ECS晶振	ECS-2033	14.31818MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-143-AU	ECS晶振	ECS-2033	14.31818MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-143-AU	ECS晶振	ECS-2033	14.31818MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-320-AU	ECS晶振	ECS-2033	32MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-320-AU	ECS晶振	ECS-2033	32MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)
ECS-2033-320-AU	ECS晶振	ECS-2033	32MHz	-55°C ~ 125°C	0.098" L x 0.079" W (2.50mm x 2.00mm)

超小型的CMOS振荡器用于便携式设备ECS-2520MVLC-250-BN-TR，ECS-2520MVLC是一种微型SMD低电流CMOS振荡器，有源晶振MultiVolt?1.6 ~ 3.6 V的能力。编码ECS-2520MVLC-250-BN-TR，2.5 x 2.0 x 0.8 mm的陶瓷软件包是LoRa WAN，低功耗/便携式，工业和物联网的理想选择应用程序。2.5 x 2.0 mm占地面积，低电流，扩展温度范围，宽电源电压，低抖动，兼容1.8V, 2.5V或3.3V电源。

ECS致力于走在最前沿，拥有各种先进的技术，使我们能够做到快速、高效地生产频率控制ECS有源晶振产品。作为我们对大会的承诺的一部分技术领先，ECS,inc .拥有设计、部件、工艺、测试、制造和质量与客户合作，优化生产能力和稳定性产品的设计。
