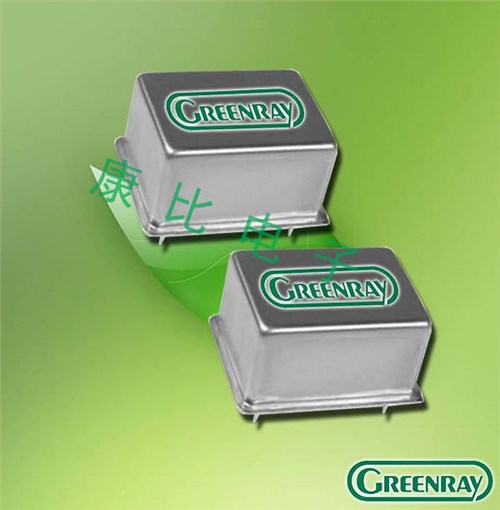

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物联网晶振,Greenray格林雷晶振YH1300系列,欧美进口晶振,编码为YH1300-T57-5.0-10.0MHz-PB,尺寸20.3 x 12.7四脚插件晶振,功率优化石英晶体振荡器,工作温度范围: -40C ~ 85ºC ,频率为125KZ~160MHZ,石英晶振,插件晶振,石英晶体振荡器,OSC晶振,欧洲进口晶振,有源晶振,低损耗、低耗能、低电压、低抖动,供电电压:3.3, 5 or 12Vdc,高稳定性晶振,耐高温晶振,Greenray格林雷工业是一家领先的精密晶体振荡器,插件晶振,OCXO晶振,有源晶振,石英晶体振荡器制造商.几十年来我们所生产的晶振,石英晶体,石英晶振等产品的设计,测试,包装都是经过一系列严格要求规范操作,我们所生产的有源晶振,贴片晶振,温补振荡器都是符合ITAR标准的,我们的质量管理体系认证为ISO:9001标准.有源晶振高频振荡器使用IC与晶片设计匹配技术：有源晶振是高频振荡器研发及生产过程必须要解决的技术难题。在设计过程中除了要考虑石英晶体谐振器具有的电性外，还有石英晶体振荡器的电极设计等其它的特殊性，必须考虑石英晶体振荡器的供应电压、起动电压和产品上升时间、下降时间等相关参数。

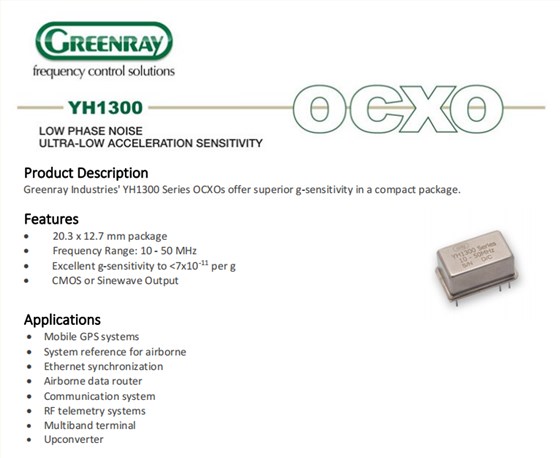

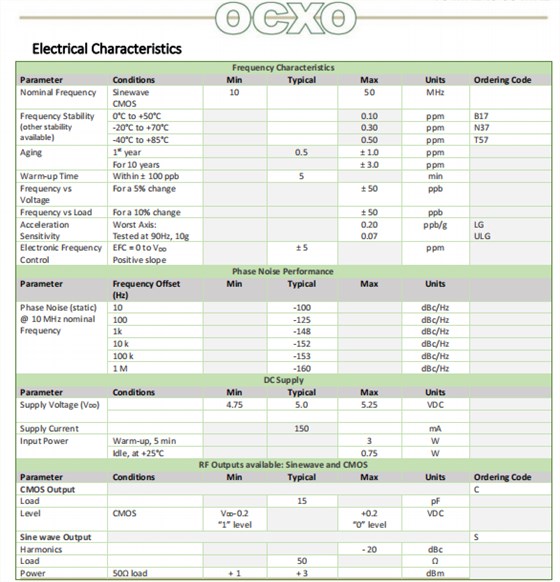

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物联网晶振,参数表
| FrequencyCharacteristics | |||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||
| Nominal Frequency |
Sinewave CMOS |
10 | 50 | MHz | |||||||||||||
|
Frequency Stability (other stability available) |
0°C to +50°C | 0.10 | ppm | B17 | |||||||||||||
| -20°C to +70°C | 0.30 | ppm | N37 | ||||||||||||||
| -40°C to +85°C | 0.50 | ppm | T57 | ||||||||||||||
| Aging | 1styear | 0.5 | ± 1.0 | ppm | |||||||||||||
| For 10 years | ± 3.0 | ppm | |||||||||||||||
| Warm-up Time | Within ± 100 ppb | 5 | min | ||||||||||||||
|
Frequency vs Voltage |
For a 5% change | ± 50 | ppb | ||||||||||||||
| Frequency vs Load | For a 10% change | ± 50 | ppb | ||||||||||||||
|
Acceleration Sensitivity |
Worst Axis: Tested at 90Hz, 10g |
0.20 0.07 |
ppb/g |
LG ULG |
|||||||||||||
|
Electronic Frequency Control |
EFC = 0 to VDD Positive slope |
± 5 | ppm | ||||||||||||||
| PhaseNoisePerformance | |||||||||||||||||
| Parameter |
FrequencyOffset (Hz) |
Min | Typical | Max | Units | ||||||||||||
|
Phase Noise (static) @ 10 MHz nominal Frequency |
10 | --100 | dBc/Hz | ||||||||||||||
| 100 | --125 | dBc/Hz | |||||||||||||||
| 1k | --148 | dBc/Hz | |||||||||||||||
| 10 k | --152 | dBc/Hz | |||||||||||||||
| 100 k | --153 | dBc/Hz | |||||||||||||||
| 1 M | --160 | dBc/Hz | |||||||||||||||
| DCSupply | |||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | ||||||||||||
| Supply Voltage (VDD) | 4.75 | 5.0 | 5.25 | VDC | |||||||||||||
| Supply Current | 150 | mA | |||||||||||||||
| Input Power | Warm-up, 5 min | 3 | W | ||||||||||||||
| Idle, at +25°C | 0.75 | W | |||||||||||||||
| RFOutputsavailable:SinewaveandCMOS | |||||||||||||||||
| Parameter | Conditions | Min | Typical | Max | Units | OrderingCode | |||||||||||
| CMOSOutput | C | ||||||||||||||||
| Load | 15 | pF | |||||||||||||||
| Level | CMOS |
VDD-0.2 “1” level |
+0.2 “0” level |
VDC | |||||||||||||
| SinewaveOutput | S | ||||||||||||||||
| Harmonics | - 20 | dBc | |||||||||||||||
| Load | 50 | ? | |||||||||||||||
| Power | 50? load | + 1 | + 3 | dBm | |||||||||||||
| EnvironmentalandMechanicalSpecifications | |||||||||||||||||
| Ratings | |||||||||||||||||
| Test | Standard | Method,Condition | Description | ||||||||||||||
| Vibration | MIL-STD-202 | 204, Cond A | 10 g, 20 to 2,000 Hz, swept sine | ||||||||||||||
| Shock | MIL-STD-202 | 213, Cond C | 1,500 g, 0.5 ms half-sine | ||||||||||||||
| MIL-STD-810 | 541, Cond A | ||||||||||||||||
| RecommendationsandGeneralInformation | |||||||||||||||||
| Conditions | |||||||||||||||||
| Parameter | Notes | ||||||||||||||||
| Operating Temperature | -40°C to +85°C | ||||||||||||||||
| Storage Temperature | -45°C to +90°C | ||||||||||||||||
| Terminal Finish | See Options below | ||||||||||||||||
| Package Finish | Stainless Steel and Nickel-plated Kovar | ||||||||||||||||
| Package Weight | 14 grams | ||||||||||||||||
| Soldering Instruction | Hand or reflow soldering | ||||||||||||||||
| Shipping | Tray package | ||||||||||||||||
| Marking |
Line 1: Greenray logo Line 2: Model Line 3: Frequency Line 4: Serial Number + Data Code (YYWW) |
||||||||||||||||

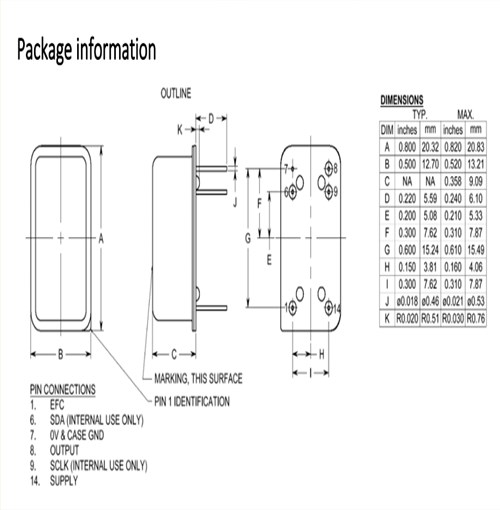

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物联网晶振，尺寸图
