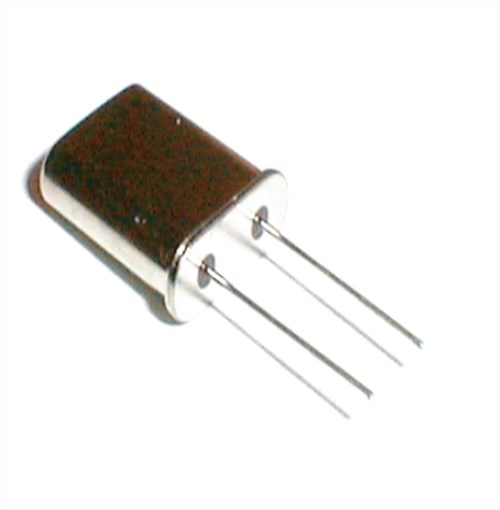

富通石英插件晶振,16MHZ,HC49U-16M000-1A30D20,HC49U系列

产品简介

富通石英插件晶振,16MHZ,HC49U-16M000-1A30D20,HC49U系列,Fortiming无源谐振器,进口插件晶振,欧美石英晶振,大尺寸晶体,16MHZ无源晶振,无源石英晶体,石英晶振,插件谐振器,尺寸11.0*4.6mm,频率16MHZ,负载20pF,工作温度-20~+70°C,低损耗晶振,低成本晶振,无铅晶振,高品质晶振,高性能晶振,无线应用晶振,蓝牙耳机晶振,微处理器晶振,小型设备晶振,摄像头晶振.

产品详情

富通石英插件晶振,16MHZ,HC49U-16M000-1A30D20,HC49U系列特点:

符合RoHS标准（无铅），可提供宽频率范围

AT切割晶体，出色的时效性，扩展的温度范围

工业标准封装，低成本，白杨微处理器无源晶体

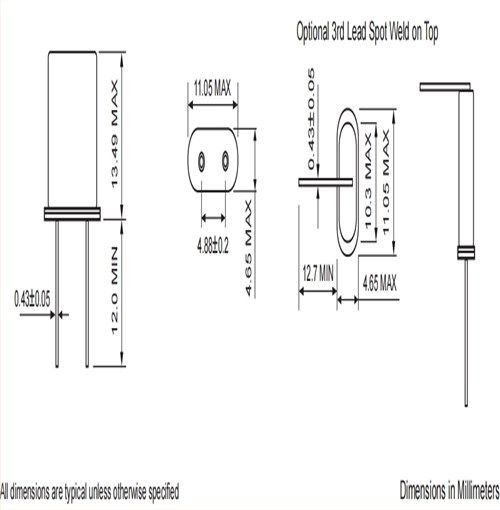

选项：顶部焊接第三根引线；乙烯基套筒；绝缘子接线片；SMT成型引线

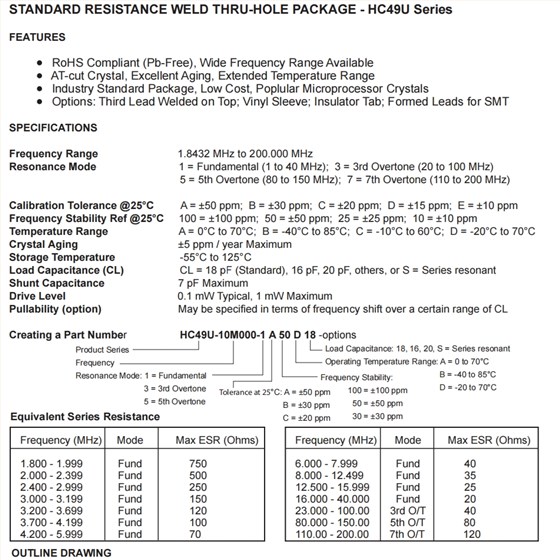

富通石英插件晶振,16MHZ,HC49U-16M000-1A30D20,HC49U系列 参数表

Frequency Range			16.000 MHz
Resonance Mode			1 = Fundamental (1 to 40 MHz);3 = 3rd Overtone (20 to 100 MHz) 5 = 5th Overtone (80 to 150 MHz);7 = 7th Overtone (110 to 200 MHz)
Calibration Tolerance @25°C			A = ±50 ppm;B = ±30 ppm;C = ±20 ppm;D = ±15 ppm;E = ±10 ppm
Frequency Stability Ref @25°C			100 = ±100 ppm;50 = ±50 ppm;25 = ±25 ppm;10 = ±10 ppm
Temperature Range			A = 0°C to 70°C;B = -40°C to 85°C;C = -10°C to 60°C;D = -20°C to 70°C
Crystal Aging			±5 ppm / year Maximum
Storage Temperature			-55°C to 125°C
Load Capacitance (CL)			CL = 18 pF (Standard), 16 pF, 20 pF, others, or S = Series resonant
Shunt Capacitance			7 pF Maximum
Drive Level			0.1 mW Typical, 1 mW Maximum
Pullability (option)			May be specified in terms of frequency shift over a certain range of CL
