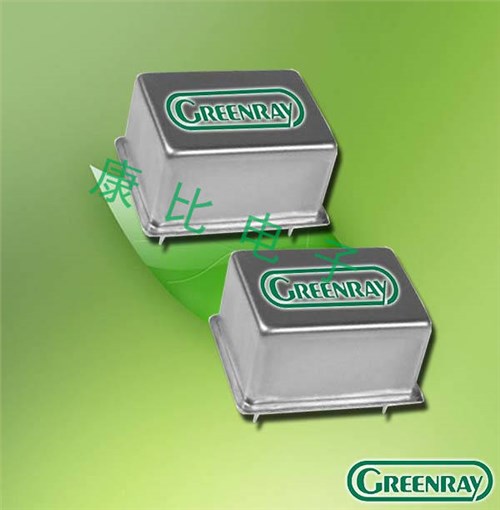

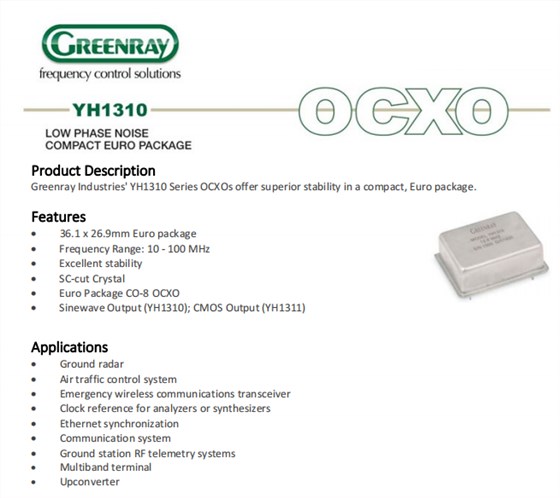

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物联网晶振,Greenray格林雷晶振YH1300系列,欧美进口晶振,编码为YH1310-N38-5.0-30MHz-E,尺寸36.1 x 26.9mm四脚插件晶振,功率优化石英晶体振荡器,工作温度范围: -40C ~ 85ºC ,石英晶振,插件晶振,石英晶体振荡器,OSC晶振,欧洲进口晶振,有源晶振,低损耗、低耗能、低电压、低抖动,供电电压:12.0: 12.0 VDC,高稳定性晶振,耐高温晶振,Greenray格林雷工业是一家领先的精密晶体振荡器,插件晶振,有源晶振,石英晶体振荡器制造商.几十年来我们所生产的晶振,石英晶体,石英晶振等产品的设计,测试,包装都是经过一系列严格要求规范操作,我们所生产的有源晶振,贴片晶振,温补振荡器都是符合ITAR标准的,我们的质量管理体系认证为ISO:9001标准.有源晶振高频振荡器使用IC与晶片设计匹配技术：有源晶振是高频振荡器研发及生产过程必须要解决的技术难题,在设计过程中除了要考虑石英晶体谐振器具有的电性外，还有石英晶体振荡器的电极设计等其它的特殊性，必须考虑石英晶体振荡器的供应电压、起动电压和产品上升时间、下降时间等相关参数。

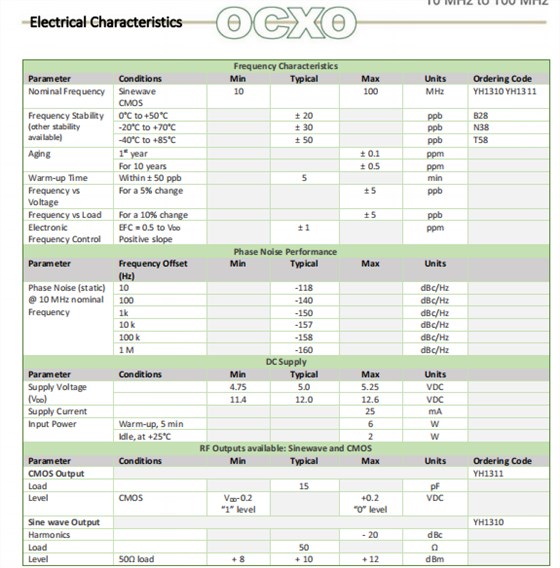

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物联网晶振,参数表
FrequencyCharacteristics
Parameter
Conditions
Min
Typical
Max
Units
OrderingCode
Nominal Frequency
Sinewave
CMOS
10
100
MHz
YH1310 YH1311
Frequency Stability
(other stability
available)
0°C to +50°C
± 20
ppb
B28
-20°C to +70°C
± 30
ppb
N38
-40°C to +85°C
± 50
ppb
T58
Aging
1st year
± 0.1
ppm
For 10 years
± 0.5
ppm
Warm-up Time
Within ± 50 ppb
5
min
Frequency vs
Voltage
For a 5% change
± 5
ppb
Frequency vs Load
For a 10% change
± 5
ppb
Electronic
Frequency Control
EFC = 0.5 to VDD
Positive slope
± 1
ppm
PhaseNoisePerformance
Parameter
FrequencyOffset
(Hz)
Min
Typical
Max
Units
Phase Noise (static)
@ 10 MHz nominal
Frequency
10
--118
dBc/Hz
100
--140
dBc/Hz
1k
--150
dBc/Hz
10 k
--157
dBc/Hz
100 k
--158
dBc/Hz
1 M
--160
dBc/Hz
DCSupply
Parameter
Conditions
Min
Typical
Max
Units
Supply Voltage
(VDD )
4.75
5.0
5.25
VDC
11.4
12.0
12.6
VDC
Supply Current
25
mA
Input Power
Warm-up, 5 min
6
W
Idle, at +25°C
2
W
RFOutputsavailable:SinewaveandCMOS
Parameter
Conditions
Min
Typical
Max
Units
OrderingCode
CMOSOutput
YH1311
Load
15
pF
Level
CMOS
VDD-0.2
“1” level
+0.2
“0” level
VDC
SinewaveOutput
YH1310
Harmonics
- 20
dBc
Load
50
?
Level
50? load
+ 8
+ 10
+ 12
dBm
EnvironmentalandMechanicalSpecifications
Screenings
Screening
Standard
Method,Condition
Description
Vibration
MIL-STD-202
204, Cond A
50 g, 20 to 2,000 Hz, swept sine
Shock
MIL-STD-202
213, Cond C
1,500 g, 0.5 ms half-sine
MIL-STD-810
541, Cond A
RecommendationsandGeneralInformation
Conditions
Parameter
Notes
Operating Temperature
-40°C to +85°C
Storage Temperature
-45°C to +90°C
Terminal Finish
SnPb 63/37 (non-RoHS)
Package Finish
Stainless Steel and Nickel-plated Kovar
Package Weight
14 grams
Soldering Instruction
Hand or reflow soldering
Shipping
Tray package
Marking
Line 1: Greenray logo
Line 2: Model
Line 3: Frequency
Line 4: Serial Number + Data Code (YYWW)

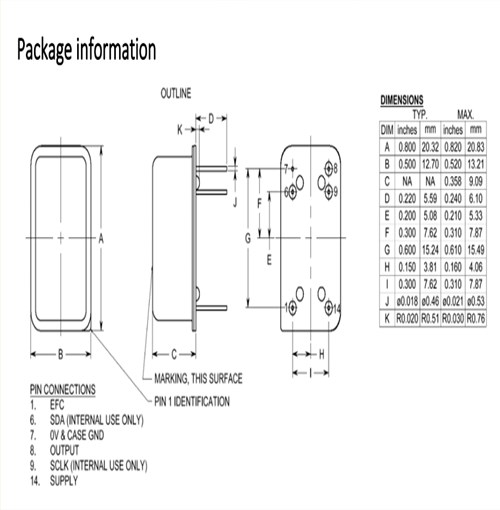

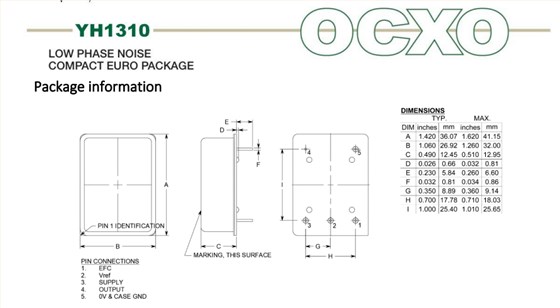

Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物联网晶振，尺寸图
Greenray晶振,YH1300-T57-5.0-10.0MHz-PB,6G物联网晶振
特点：
尺寸36.1 x 26.9mm四脚插件晶振石英晶振
工作温度范围-40-85℃欧美进口晶振
高精度、高频率稳定性、可靠性
优良的耐环境特性，可达工业级温度
满足无铅焊接的回流温度曲线要求
◆符合RoHS标准，绿色环保
