5032mm微型晶振,TST嘉硕无源晶体,TZ0614A,10M无线应用晶振,台湾贴片晶体,嘉硕小体积晶振,5032mm无源晶振,TST CRYSTAL,无源谐振器,四脚贴片晶振,TZ0614A晶振,10MHZ晶体谐振器,尺寸5.0x3.2mm,频率10MHZ,高可靠晶振,高性能晶振,无铅环保晶振,低损耗晶振,低成本晶振,低老化晶振,无线应用晶振,通信设备晶振,便携式设备晶振,数码电子晶振.

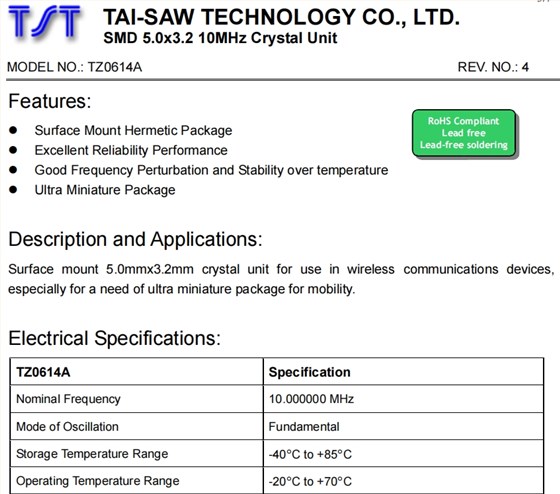

5032mm微型晶振,TST嘉硕无源晶体,TZ0614A,10M无线应用晶振特点:
表面安装密封包,卓越的可靠性性能
良好的频率扰动和温度稳定性,超微型包
表面安装5.0mmx3.2mm贴片无源晶振单元用于无线通信设备
特别是需要超微型封装的移动。
5032mm微型晶振,TST嘉硕无源晶体,TZ0614A,10M无线应用晶振 参数表
| TZ0614A | Specification |
| NominalFrequency | 10.000MHZ |
| Mode of Operation | Fundamental |
| Storage TemperatureRange | -55°Cto+125°C |
| Operating TemperatureRange | -20°Cto+70°C |
|

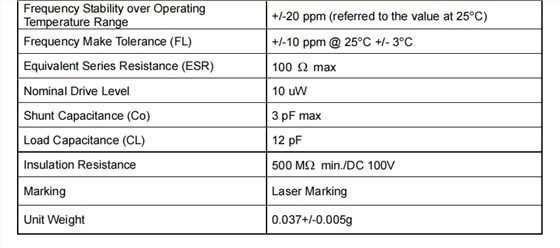

Frequency Stability over Operating Temperature Range |
+/-20ppm(referrend to the value ai 25°C) |
| FrequencyMakeTolerance(FL) | +/-10 ppm@25°C+/-3°C |
| EquivalentSeriesResistor(ESR) | 100 Ωmax. |
| Nominal DriveLevel | 10uW |
| ShuntCapacitance(Co) | 3.0 pFmax |
| LoadCapacitance(CL) | 12.5pF |
| InsulationResistance | 500MΩmin atDC100V |
| Marking |
Lasermarking |

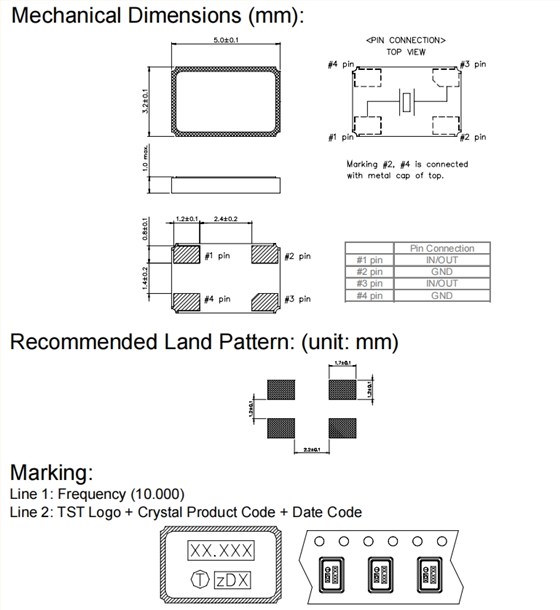

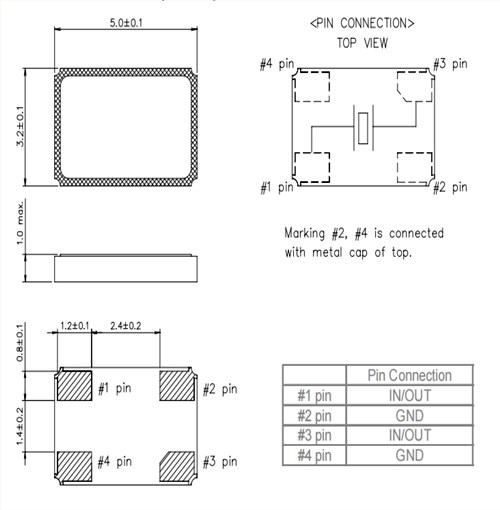

5032mm微型晶振,TST嘉硕无源晶体,TZ0614A,10M无线应用晶振 尺寸图
