2012mm Q-SC20S03205C5AAAF SC-20S SMD 时钟应用 ±5ppm

2012mm Q-SC20S03205C5AAAF SC-20S SMD 时钟应用 ±5ppm,尺寸为2012mm,频率为32.768KHZ,频率稳定性±5ppm,日本进口晶振，精工晶振，32.768KHZ晶振,石英晶振,无源晶振,无源贴片晶振，2012mm贴片晶振，时钟应用晶振，可穿戴设备晶振，手机晶振，无线模块晶振，Q-SC20S03220C5AAAF贴片晶体。

贴片石英晶振产品主要应用范围：手机，可穿戴设备，各种模块，各种微信号时钟等.2012mm Q-SC20S03205C5AAAF SC-20S SMD 时钟应用 ±5ppm.
2012mm Q-SC20S03205C5AAAF SC-20S SMD 时钟应用 ±5ppm参数表

项目	符合	规格	条件
标称频率	_nom	32 .768kHz
频率容许偏差	f_tol	±20×10-6	请咨询我们
顶点温度	Ti	+25±5℃
二次温度保数	B	(-0 .030±10%)×10-6/℃2
负载容量	CL	6pF~12 .5pF
串联电阻	R1	70kΩ max .
绝对最大激励水平	Dlmax .	1 .0μW max .
推荐激励等级	DL	0 . 1μW typ .
并行电容	C0	1 .3pF typ .
频率经年变化	f_age	±3×10-6	+25±3℃、初年度
工作温度范围	T_use	-40~+85℃
保存温度范围	T_stg	-55~+125℃	单品保存

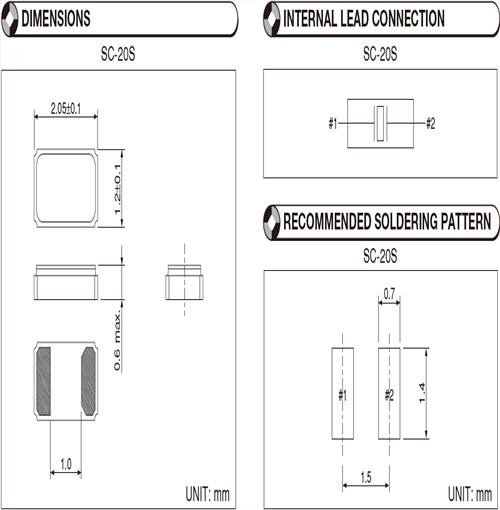

2012mm Q-SC20S03205C5AAAF SC-20S SMD 时钟应用 ±5ppm尺寸图

Q-SC20S03205C5AAAF晶振特点：

超薄型0.6 mm厚度和SMD型

高密度和耐冲击性，耐热性强，完全无Pb

8RoHS合件，内置可靠的光刻石英振子

更多相关精工晶振型号

原厂编码	厂家	型号	系列	频率	频率稳定度
Q-SPT7P032762070FF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SPT7P032761070FF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SPT7P032760570FF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC32S03220C5AAE	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC32S03210C5AFE	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC32S03205C5ADE	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC32S0320570CADF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC32S0321070CAAF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC32S0322070AAAF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC32S03220C5AAAF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC32S03210C5AAFF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC32S03205C5AADF	Seiko精工晶振	SC-32S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC20S0322070CAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC20S0321070CAFF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC20S0320570CADF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
VT200F-6PF20PPM	Seiko精工晶振	VT-200-F	kHz Crystal (Tuning Fork)	32.768kHz	-
VT200F-12.5PF20PPM	Seiko精工晶振	VT-200-F	kHz Crystal (Tuning Fork)	32.768kHz	-
Q-SPT7P0327620C5GF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SPT7P0327610C5GF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SPT7P0327605C5GF	Seiko精工晶振	SSP-T7	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC16S03220C5AAAF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC16S03210C5AAAF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC16S03205C5AAAF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC16S0322070CAAF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC16S0321070CAFF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC16S0320570CADF	Seiko精工晶振	SC-16S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SC20S03220C5AAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
Q-SC20S03210C5AAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±10ppm
Q-SC20S03205C5AAAF	Seiko精工晶振	SC-20S	kHz Crystal (Tuning Fork)	32.768kHz	±5ppm
Q-SPT2S0327620C5DJ	Seiko精工晶振	SSP-T2A-F	kHz Crystal (Tuning Fork)	32.768kHz	±20ppm
