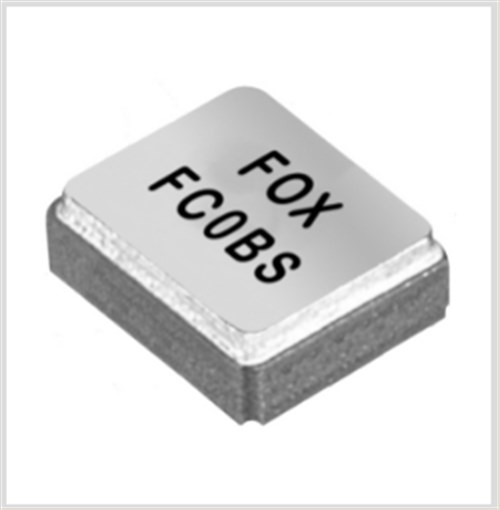

FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振，尺寸1.6x1.2mm，频率24.576MHZ，美国FOX晶振，福克斯无源晶振，欧美进口晶振，石英贴片晶振，石英晶体谐振器，四脚贴片晶振，1612小体积晶振，无源SMD晶体，SMD晶振，无源晶振，贴片晶振，水晶振动子，高质量石英晶振，轻薄型晶振，高性能晶振，低损耗晶振，蓝牙专用晶振，智能家居专用晶振，平板电脑石英晶振，智能音响晶振，移动通信晶振，6G无线设备晶振，6G以太网专用晶振，便携式设备晶振，仪器设备晶振，数字视频专用晶振，娱乐设备晶振，SMD晶振产品具备低损耗高质量的特点.非常适合用于蓝牙，智能家居，平板电脑，智能音响，移动通信，6G无线设备，6G以太网，便携式设备，仪器设备，数字视频等领域.FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振.

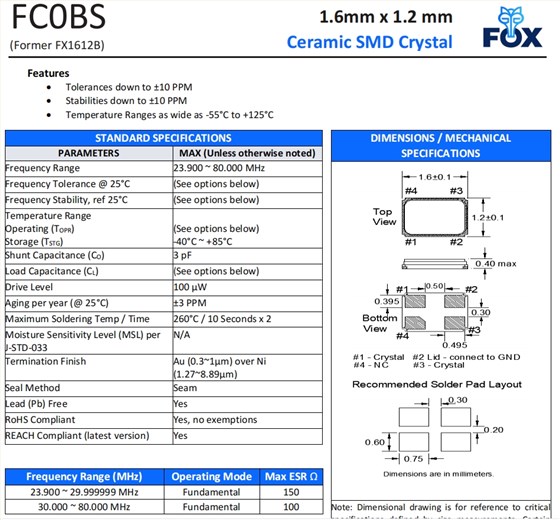

FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振 参数表
| STANDARD SPECIFICATIONS | ||||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||
| Frequency Range | 24.5760 MHz | |||||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | |||||||||||||||
| Frequency Stability, ref 25°C | (See options below) | |||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -40°C ~ +85°C |
|||||||||||||||
| Shunt Capacitance (CO) | 3 pF | |||||||||||||||
| Load Capacitance (CL) | (See options below) | |||||||||||||||
| Drive Level | 100 µW | |||||||||||||||
| Aging per year (@ 25°C) | ±3 PPM | |||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | |||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | |||||||||||||||
| Termination Finish |
Au (0.3~1µm) over Ni (1.27~8.89µm) |
|||||||||||||||
| Seal Method | Seam | |||||||||||||||
| Lead (Pb) Free | Yes | |||||||||||||||
| RoHS Compliant | Yes, no exemptions | |||||||||||||||
| REACH Compliant (latest version) | Yes | |||||||||||||||

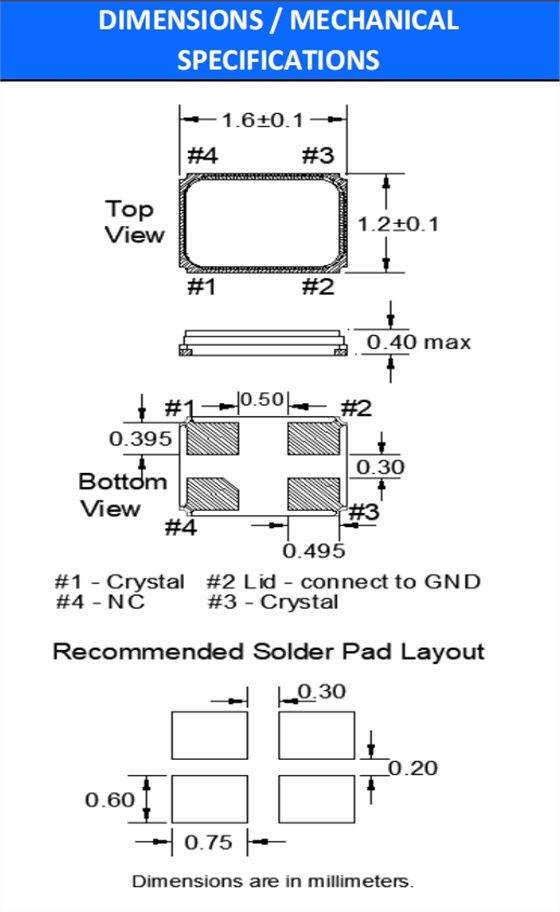

FC0BSFEEN24A576-T2|福克斯FOX晶振|6G以太网晶振 尺寸图
无源晶体产品特征:
公差低至10PPM
稳定性低至10PPM
温度范围宽至-55°C至+125°C
更多相关福克斯晶振型号
| 欧美晶振原厂编码 | 厂家 | 型号 | 频率 | 频率稳定度 |
| FOXSLF/100-20 | 福克斯晶振 | HC49SLF | 10MHz | ±50ppm |
| FX252BS-16.000 | 福克斯晶振 | FX252B | 16MHz | ±50ppm |
| FQ5032B-20.000 | 福克斯晶振 | C5BQ | 20MHz | ±30ppm |
| FQ7050B-6.000 | 福克斯晶振 | C7BQ | 6MHz | ±30ppm |
| FOXLF100-20 | 福克斯晶振 | HC49ULF | 10MHz | ±50ppm |
| FOXLF200-20 | 福克斯晶振 | HC49ULF | 20MHz | ±50ppm |
| FOXLF080-20 | 福克斯晶振 | HC49ULF | 8MHz | ±50ppm |
| FOXLF115-20 | 福克斯晶振 | HC49ULF | 11.0592MHz | ±50ppm |
| NC38LF-327 | 福克斯晶振 | NC38LF | 32.768kHz | - |
| FOXLF040 | 福克斯晶振 | HC49ULF | 4MHz | ±50ppm |
| NC26LF-327 | 福克斯晶振 | NC26LF | 32.768kHz | - |
| FOXLF036S | 福克斯晶振 | HC49ULF | 3.579545MHz | ±50ppm |
| FQ3225B-25.000 | 福克斯晶振 | FQ3225B | 25MHz | ±50ppm |
| FQ1045A-3.6864 | 福克斯晶振 | FQ1045A | 3.6864MHz | ±30ppm |
| FOXLF018S | 福克斯晶振 | HC49ULF | 1.8432MHz | ±50ppm |
| FOXSDLF/036S | 福克斯晶振 | HC49SDLF | 3.579545MHz | ±50ppm |
| FOXSDLF/120R-20/TR | 福克斯晶振 | HC49SDLF | 12MHz | ±50ppm |
| FSRLF327-6 | 福克斯晶振 | FSRLF | 32.768kHz | - |
| FOXLF115 | 福克斯晶振 | HC49ULF | 11.0592MHz | ±50ppm |
| FQ3225B-24.000 | 福克斯晶振 | FQ3225B | 24MHz | ±50ppm |
| FOXLF0368S | 福克斯晶振 | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSDLF/184-20 | 福克斯晶振 | HC49SDLF | 18.432MHz | ±50ppm |
| FOXSDLF/060-20 | 福克斯晶振 | HC49SDLF | 6MHz | ±50ppm |
| FOXSDLF/040 | 福克斯晶振 | HC49SDLF | 4MHz | ±50ppm |
| FOXSDLF/221-20 | 福克斯晶振 | HC49SDLF | 22.1184MHz | ±50ppm |
| FOXSDLF/073-20 | 福克斯晶振 | HC49SDLF | 7.3728MHz | ±50ppm |
| FOXSDLF/049-20 | 福克斯晶振 | HC49SDLF | 4.9152MHz | ±50ppm |
| FOXSDLF/250FR-20/TR | 福克斯晶振 | HC49SDLF | 25MHz | ±50ppm |
| FX425B-12.000 | 福克斯晶振 | FX425B | 12MHz | ±50ppm |
| FQ5032B-18.432 | 福克斯晶振 | C5BQ | 18.432MHz | ±30ppm |
| FX252BS-24.000 | 福克斯晶振 | FX252B | 24MHz | ±50ppm |
| FQ7050BR-7.3728 | 福克斯晶振 | C7BQ | 7.3728MHz | ±50ppm |
| FX122-327 | 福克斯晶振 | FX122 | 32.768kHz | - |
| FOXSLF/115-20 | 福克斯晶振 | HC49SLF | 11.0592MHz | ±50ppm |
| FOXSLF/250F-20 | 福克斯晶振 | HC49SLF | 25MHz | ±50ppm |
| FOXSLF/147-20 | 福克斯晶振 | HC49SLF | 14.7456MHz | ±50ppm |
| FOXSLF/073-20 | 福克斯晶振 | HC49SLF | 7.3728MHz | ±50ppm |
| FOXSLF/160-20 | 福克斯晶振 | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/160 | 福克斯晶振 | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/080 | 福克斯晶振 | HC49SLF | 8MHz | ±50ppm |
| FOXSLF/128-20 | 福克斯晶振 | HC49SLF | 12.288MHz | ±50ppm |
| FOXSLF/245F-20 | 福克斯晶振 | HC49SLF | 24.576MHz | ±50ppm |
| FOXSLF/040A | 福克斯晶振 | HC49SLF | 4MHz | ±50ppm |
| FOXSLF/120 | 福克斯晶振 | HC49SLF | 12MHz | ±50ppm |
| FOXSLF/0368-20 | 福克斯晶振 | HC49SLF | 3.6864MHz | ±50ppm |
| FOXSLF/240F-20 | 福克斯晶振 | HC49SLF | 24MHz | ±50ppm |
| FOXLF250F-20 | 福克斯晶振 | HC49ULF | 25MHz | ±50ppm |
| FOXLF120-20 | 福克斯晶振 | HC49ULF | 12MHz | ±50ppm |
| FOXLF160 | 福克斯晶振 | HC49ULF | 16MHz | ±50ppm |
| FOXLF160-20 | 福克斯晶振 | HC49ULF | 16MHz | ±50ppm |
| FOXLF040A | 福克斯晶振 | HC49ULF | 4MHz | ±50ppm |
| FOXLF0368-20 | 福克斯晶振 | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSLF/143-20 | 福克斯晶振 | HC49SLF | 14.31818MHz | ±50ppm |
| FOXSDLF/143-20 | 福克斯晶振 | HC49SDLF | 14.31818MHz | ±50ppm |
| FOXSDLF/245F-20 | 福克斯晶振 | HC49SDLF | 24.576MHz | ±50ppm |
| FOXSDLF/041 | 福克斯晶振 | HC49SDLF | 4.194304MHz | ±50ppm |
