ELM11系列,AEL智能设备晶振,ELM11-36.000MHz-10-R60-D1X-T,2016mm,36MHZ,艾尔英国晶振,进口无源晶振,AEL Crystal,石英SMD晶振,无源晶振,石英水晶振动子,SMD晶振,四脚无源晶振,2016mm超小型晶体,尺寸2.0x1.6mm,频率36MHZ,负载10pF,低耗能晶振,低成本晶振,高品质晶振,高性能晶振,智能穿戴晶振,笔记本电脑晶振,娱乐设备晶振,数字视频晶振.
ELM11系列,AEL智能设备晶振,ELM11-36.000MHz-10-R60-D1X-T,2016mm,36MHZ特点:
SMD贴片无源晶振
公差：±10ppm可用
工作温度-10°C至+60°C至-40°C至+125°C

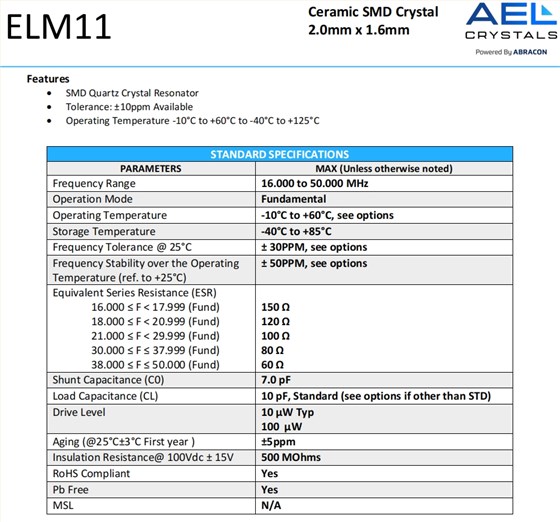

ELM11系列,AEL智能设备晶振,ELM11-36.000MHz-10-R60-D1X-T,2016mm,36MHZ 参数表
| STANDARD SPECIFICATIONS | |||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||||
| Frequency Range | 36.000 MHz | ||||||||||||||
| Operation Mode | Fundamental | ||||||||||||||
| Operating Temperature | -10°C to +60°C, see options | ||||||||||||||
| Storage Temperature | -40°C to +85°C | ||||||||||||||
| Frequency Tolerance @ 25°C | ± 30PPM, see options | ||||||||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options | ||||||||||||||
|
Equivalent Series Resistance (ESR) 16.000 ≤ F < 17.999 (Fund) 18.000 ≤ F < 20.999 (Fund) 21.000 ≤ F < 29.999 (Fund) 30.000 ≤ F ≤ 37.999 (Fund) 38.000 ≤ F ≤ 50.000 (Fund) |
150Ω 120Ω 100Ω 80Ω 60Ω |
||||||||||||||
| Shunt Capacitance (C0) | 7.0 pF | ||||||||||||||
| Load Capacitance (CL) | 10 pF, Standard (see options if other than STD) | ||||||||||||||
| Drive Level |
10 μW Typ 100μW |
||||||||||||||
| Aging (@25°C±3°C First year ) | ±5ppm | ||||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | ||||||||||||||
| RoHS Compliant | Yes | ||||||||||||||
| Pb Free | Yes | ||||||||||||||
| MSL | N/A | ||||||||||||||

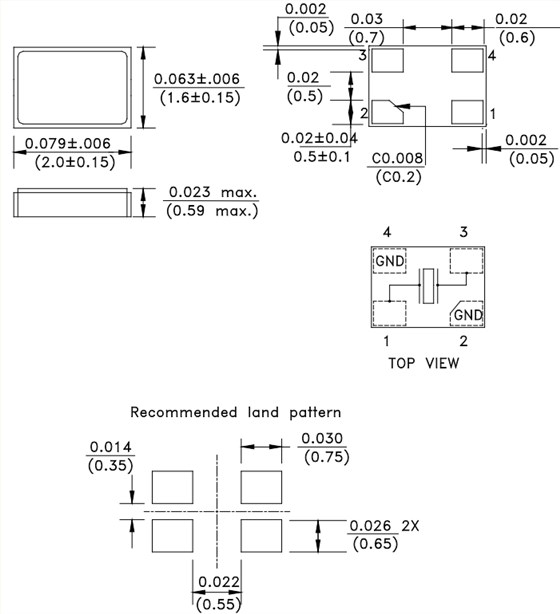

ELM11系列,AEL智能设备晶振,ELM11-36.000MHz-10-R60-D1X-T,2016mm,36MHZ 尺寸图
| Part | 美国进口晶振 | Length | Width | Height | Operating Temperature | Frequency |
| ELM11-32.000MHz-10-R60-D1X-T | AEL Crystals | 2mm | 1.6mm | 0.5mm | -40°C ~ 85°C | 32 MHz |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 12 MHz |
| ELM3-14.000MHz-30-R80-D4H-T | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 14 MHz |
| ELM3-24.000MHz-18-R40-D4H-T | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 24 MHz |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL Crystals | 5mm | 3.2mm | 1mm | -20°C ~ 70°C | 8.057 MHz |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 12 MHz |
| ELM8-12.5829MHz-16-R60-1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -10°C ~ 60°C | 12.5829 MHz |
| ELM8-14.000MHz-16-R150-B1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 14.8 MHz |
| ELM8-18.432MHz-16-R80-DQ-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 18.432 MHz |
| ELM8-24.000MHz-10-R60-D1W-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 24 MHz |
| ELM8-24.000MHz-18-R60-B1W-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 24 MHz |
| ELM8-24.000MHz-9-R40-N1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -30°C ~ 85°C | 24 MHz |
| ELM8-26.000MHz-18-R60-B1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 26 MHz |
| ELM8-32.000MHz-16-R40-B1U-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 75°C | 32 MHz |
| ELM8-32.000MHz-9-R40-D1G-T | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 32 MHz |
| ELS07-32.768kHz-6-T | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| ELS07-32.768kHz-T | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-7-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-9-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS13-32.768kHz-T | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS25-32.768kHz-6-2-T | AEL Crystals | 8mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS25-32.768kHz-T | AEL Crystals | 8mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| ELS06-32.768kHz-9-T | AEL Crystals | 2mm | 1.2mm | 0.6mm | -40°C ~ 85°C | 32.768 kHz |
| ELS05-32.768kHz-9-T | AEL Crystals | 1.6mm | 1mm | 0.5mm | -40°C ~ 85°C | 32.768 kHz |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL Crystals | 1.6mm | 1.2mm | 0.4mm | -40°C ~ 85°C | 24 MHz |
| X10M000000L121 | AEL Crystals | 11.3mm | 4mm | 16mm | -20°C ~ 70°C | 10 MHz |
| X10M000000S065 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -40°C ~ 105°C | 10 MHz |
| X12M000000S081 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 12 MHz |
| X12M000000S096 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 12 MHz |
| X12M000000S118 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 12 MHz |
| X12M582900S001 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -10°C ~ 60°C | 12.5829 MHz |
| X13M560000S024 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 13.56 MHz |
| X14M000000S003 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 14 MHz |
| X14M800000S001 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 14.8 MHz |
| X16M000000S182 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 16 MHz |
| X16M000000S207 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -40°C ~ 85°C | 16 MHz |
| X18M432000S049 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 18.432 MHz |
| X21M948717S005 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 125°C | 21.948717 MHz |
| X24M000000S029 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -30°C ~ 85°C | 24 MHz |
| X24M000000S049 | AEL Crystals | 2.5mm | 2mm | 0.5mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S050 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S079 | AEL Crystals | 5mm | 3.2mm | 1mm | -40°C ~ 85°C | 24 MHz |
| X24M000000S094 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 24 MHz |
| X24M000000S303 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -30°C ~ 85°C | 24 MHz |
| X26M000000S301 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 70°C | 26 MHz |
| X30M000000S005 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -20°C ~ 70°C | 30 MHz |
| X32K768L025 | AEL Crystals | 2.1mm | 6.2mm | 13.2mm | -10°C ~ 60°C | 32.768 kHz |
| X32K768L104 | AEL Crystals | 2.9mm | 8mm | 17mm | -10°C ~ 60°C | 32.768 kHz |
| X32K768S003 | AEL Crystals | 7.9mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S012 | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S013 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S020 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S021 | AEL Crystals | 4.1mm | 1.5mm | 0.7mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S036 | AEL Crystals | 10.41mm | 4.06mm | 3.56mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S038 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S041 | AEL Crystals | 4mm | 1.5mm | 0.7mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S045 | AEL Crystals | 2mm | 6mm | 9mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S051 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S067 | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S073 | AEL Crystals | 6mm | 2.5mm | 8.3mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S112 | AEL Crystals | 7.9mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S115 | AEL Crystals | 8mm | 4mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S134 | AEL Crystals | 7mm | 1.5mm | 1.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S233 | AEL Crystals | 10.4mm | 4mm | 3.5mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S239 | AEL Crystals | 7.9mm | 3.8mm | 2.4mm | -40°C ~ 85°C | 32.768 kHz |
| X32K768S300 | AEL Crystals | 3.2mm | 1.5mm | 0.75mm | -40°C ~ 85°C | 32.768 kHz |
| X32M000000S039 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -40°C ~ 85°C | 32 MHz |
| X32M000000S045 | AEL Crystals | 3mm | 2.5mm | 0.6mm | -20°C ~ 75°C | 32 MHz |
| X32M000000S046 | AEL Crystals | 2mm | 1.6mm | 0.5mm | -40°C ~ 85°C | 32 MHz |
| X3M686400S004 | AEL Crystals | 11.8mm | 5.5mm | 2.1mm | -10°C ~ 60°C | 3.6864 MHz |
| X4M000000S002 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -40°C ~ 85°C | 4 MHz |
| X4M000000S018 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -10°C ~ 60°C | 4 MHz |
| X4M000000S084 | AEL Crystals | 12.3mm | 4.6mm | 4.3mm | -25°C ~ 75°C | 4 MHz |
