32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶体

产品简介

32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶体，尺寸为3215mm,频率为32.768KHZ,工作温度为-40°C~+85°C，ECS晶振，美国伊西斯晶振，欧美进口晶振，32.768KHZ晶振，SMD晶体，音叉晶体，3215mm贴片晶体，贴片无源晶振，石英晶体谐振器，石英晶体，时钟应用晶振，无线设备晶振，蓝牙音响晶振，高性能晶振。

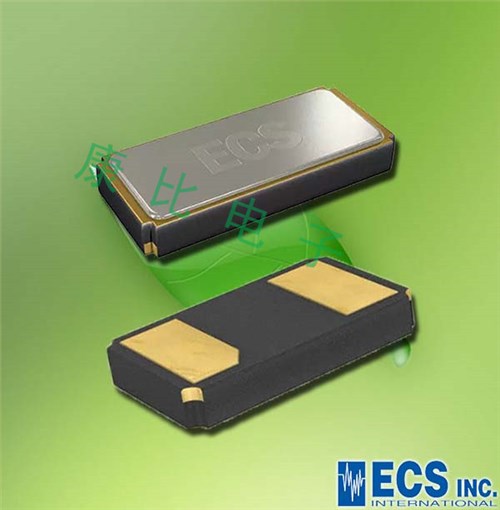

超微型ECS-。327-CDX-1128是一个非常紧凑的SMD音叉无源晶体。3.2x1.5x0.9mm的陶瓷封装是适合当今的SMD制造环境。还可以广泛应用时钟，无线设备，蓝牙音响等领域。32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶体.

产品详情

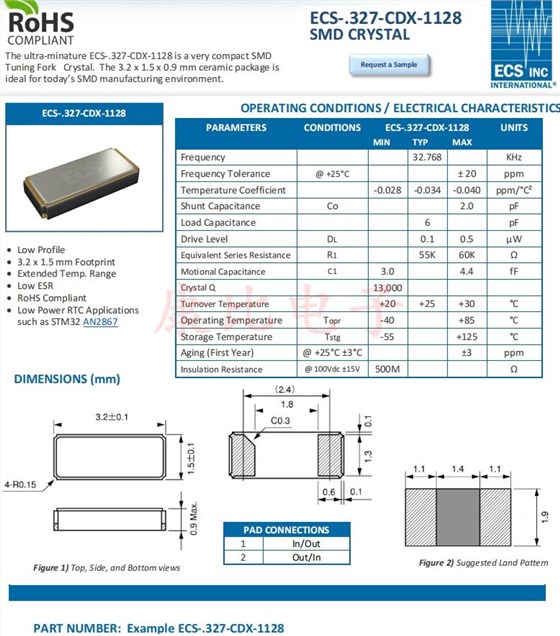

PARAMETERS	CONDITIONS	ECS-.327-CDX-1128			UNITS
		MIN	TYP	MAX
Frequency			32.768		KHz
Frequency Tolerance	@ +25°C			± 20	ppm
Temperature Coefficient		--0.028	--0.034	--0.040	ppm/°C²
Shunt Capacitance	Co			2.0	pF
Load Capacitance			6		pF
Drive Level	DL		0.1	0.5	μW
Equivalent Series Resistance	R1		55K	60K	Ω

Motional Capacitance	C1	3.0		4.4	fF
Crystal Q		13,000
Turnover Temperature		+20	+25	+30	°C
Operating Temperature	Topr	--40		+85	°C
Storage Temperature	Tstg	--55		+125	°C
Aging (First Year)	@ +25°C ±3°C			±3	ppm
Insulation Resistance	@ 100Vdc ±15V	500M			Ω

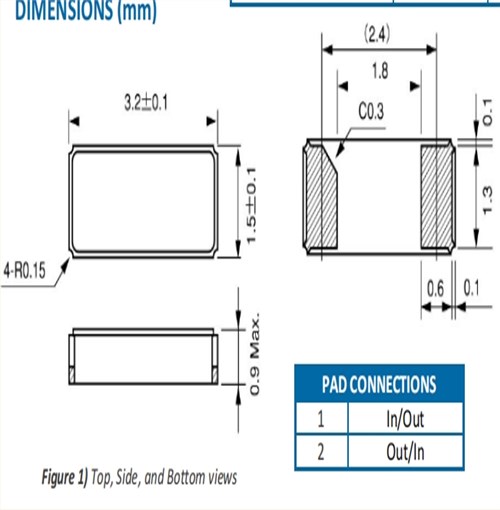

32.768K|ECS-.327-CDX-1128|ECS-CDX|3215mm|音叉晶体尺寸图

ECS-.327-CDX-1128 特点：

•低调

•3.2 x 1.5毫米的足迹

•延长温度范围

•低ESR
•符合RoHS标准
•低功耗RTC应用
如STM32 AN2867

更多相关美国ECS晶振型号

原厂编码	厂家	型号	频率	工作温度
ECS-.327-CDX-1128	ECS晶振	ECS-CDX	32.768kHz	-40°C ~ 85°C
ECS-.327-12.5-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-.327-7-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-.327-6-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-.327-9-12-TR	ECS晶振	ECX-12	32.768kHz	-40°C ~ 85°C
ECS-240-8-47-JTN-TR	ECS晶振	ECX-1247	24MHz	-40°C ~ 85°C
ECS-260-8-47-JTN-TR	ECS晶振	ECX-1247	26MHz	-40°C ~ 85°C
ECS-360-8-47-JTN-TR	ECS晶振	ECX-1247	36MHz	-40°C ~ 85°C
ECS-480-8-47-JTN-TR	ECS晶振	ECX-1247	48MHz	-40°C ~ 85°C
ECS-320-8-47-JTN-TR	ECS晶振	ECX-1247	32MHz	-40°C ~ 85°C
ECS-400-8-47-JTN-TR	ECS晶振	ECX-1247	40MHz	-40°C ~ 85°C
ECS-.327-CDX-1293	ECS晶振	ECS-CDX	32.768kHz	-40°C ~ 85°C
ECS-240-8-48-CKY-TR	ECS晶振	ECX-1048	24MHz	-30°C ~ 85°C
ECS-260-8-48-CKY-TR	ECS晶振	ECX-1048	26MHz	-30°C ~ 85°C
ECS-374-8-48-CKY-TR	ECS晶振	ECX-1048	37.4MHz	-30°C ~ 85°C
ECS-384-8-48-CKY-TR	ECS晶振	ECX-1048	38.4MHz	-30°C ~ 85°C
ECS-400-8-48-CKY-TR	ECS晶振	ECX-1048	40MHz	-30°C ~ 85°C
ECS-480-8-48-CKY-TR	ECS晶振	ECX-1048	48MHz	-30°C ~ 85°C
ECS-520-8-48-CKY-TR	ECS晶振	ECX-1048	52MHz	-30°C ~ 85°C
ECS-240-8-48-RTN-TR	ECS晶振	ECX-1048	24MHz	-40°C ~ 85°C
ECS-260-8-48-RTN-TR	ECS晶振	ECX-1048	26MHz	-40°C ~ 85°C
ECS-374-8-48-RTN-TR	ECS晶振	ECX-1048	37.4MHz	-40°C ~ 85°C
ECS-384-8-48-RTN-TR	ECS晶振	ECX-1048	38.4MHz	-40°C ~ 85°C
ECS-400-8-48-RTN-TR	ECS晶振	ECX-1048	40MHz	-40°C ~ 85°C
ECS-480-8-48-RTN-TR	ECS晶振	ECX-1048	48MHz	-40°C ~ 85°C
ECS-520-8-48-RTN-TR	ECS晶振	ECX-1048	52MHz	-40°C ~ 85°C
