Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶体

产品简介

Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶体，尺寸2.5x2.0mm，频率为24MHZ，欧洲石英晶体，欧美进口晶振，无源贴片晶振，石英SMD晶振，SMD晶振，石英水晶振子，石英晶体谐振器，小体积晶振，手持式设备晶振，无线设备晶振，蓝牙音响晶振，小型设备晶振，智能家居晶振，网络设备晶振，平板电脑晶振，低功耗晶振，轻薄型晶振，低成本晶振，高质量晶振.

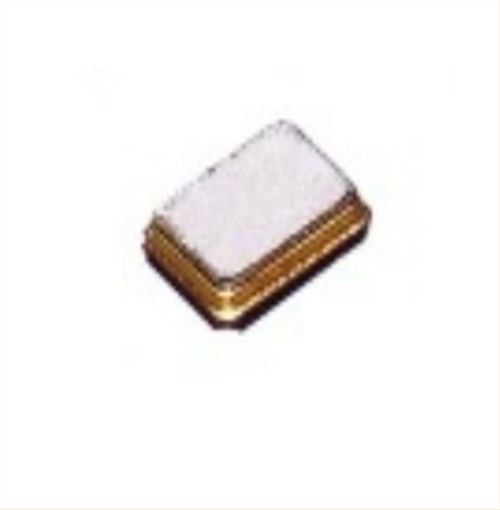

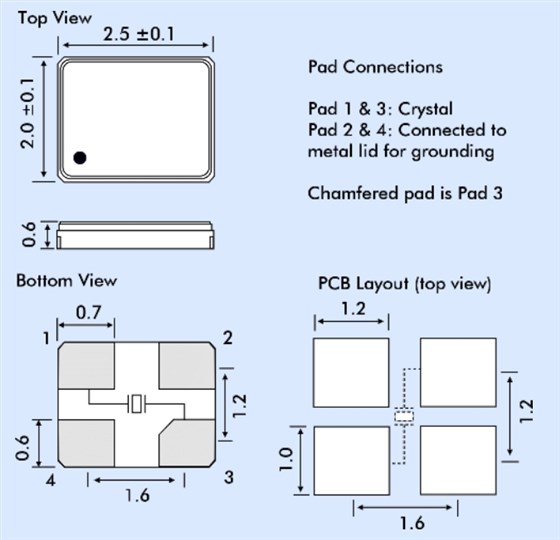

X22贴片石英晶振是覆盖频率的超小型AT切割晶体频率范围12MHz至60MHz。它们的小尺寸（2.5 x2.0mm）和低质量使这些晶体成为小型化的理想选择手持式设备和类似的高密度应用。Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶体.

产品详情

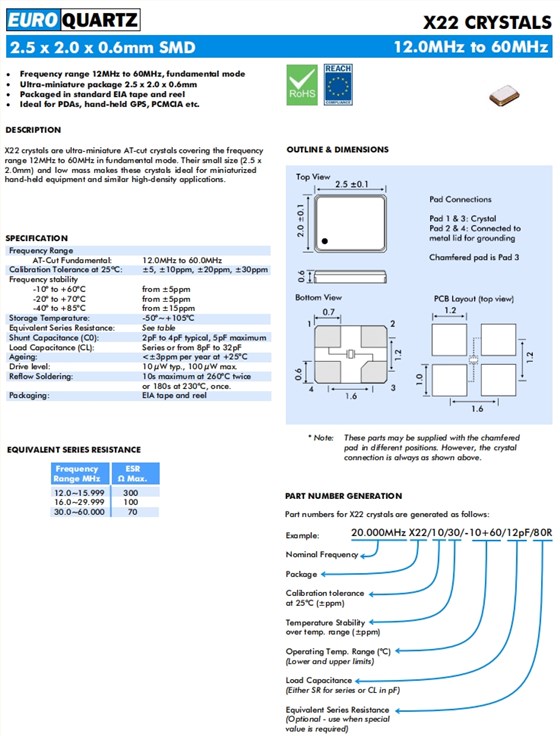

Euroquartz小型晶振,6GWIFI晶振,24.000MHz X22/10/30/-10+6石英晶体 参数表

Frequency Range
AT-Cut Fundamental:				24.0MHz
Calibration Tolerance at 25ºC:				±5, ±10ppm, ±20ppm, ±30ppm
Frequency stability -10° to +60°C -20° to +70°C -40° to +85°C				from ±5ppm from ±5ppm from ±15ppm
Storage Temperature:				-50°~+105°C
Equivalent Series Resistance:				See table
Shunt Capacitance (C0):				2pF to 4pF typical, 5pF maximum
Load Capacitance (CL):				Series or from 8pF to 32pF
Ageing:				<±3ppm per year at +25°C
Drive level:				10 µW typ., 100 µW max.
Reflow Soldering:				10s maximum at 260°C twice
or 180s at 230°C, once.
